Lawn Roller Striping Kit for 2006 John Deere 757 with 60" 7 Iron deck

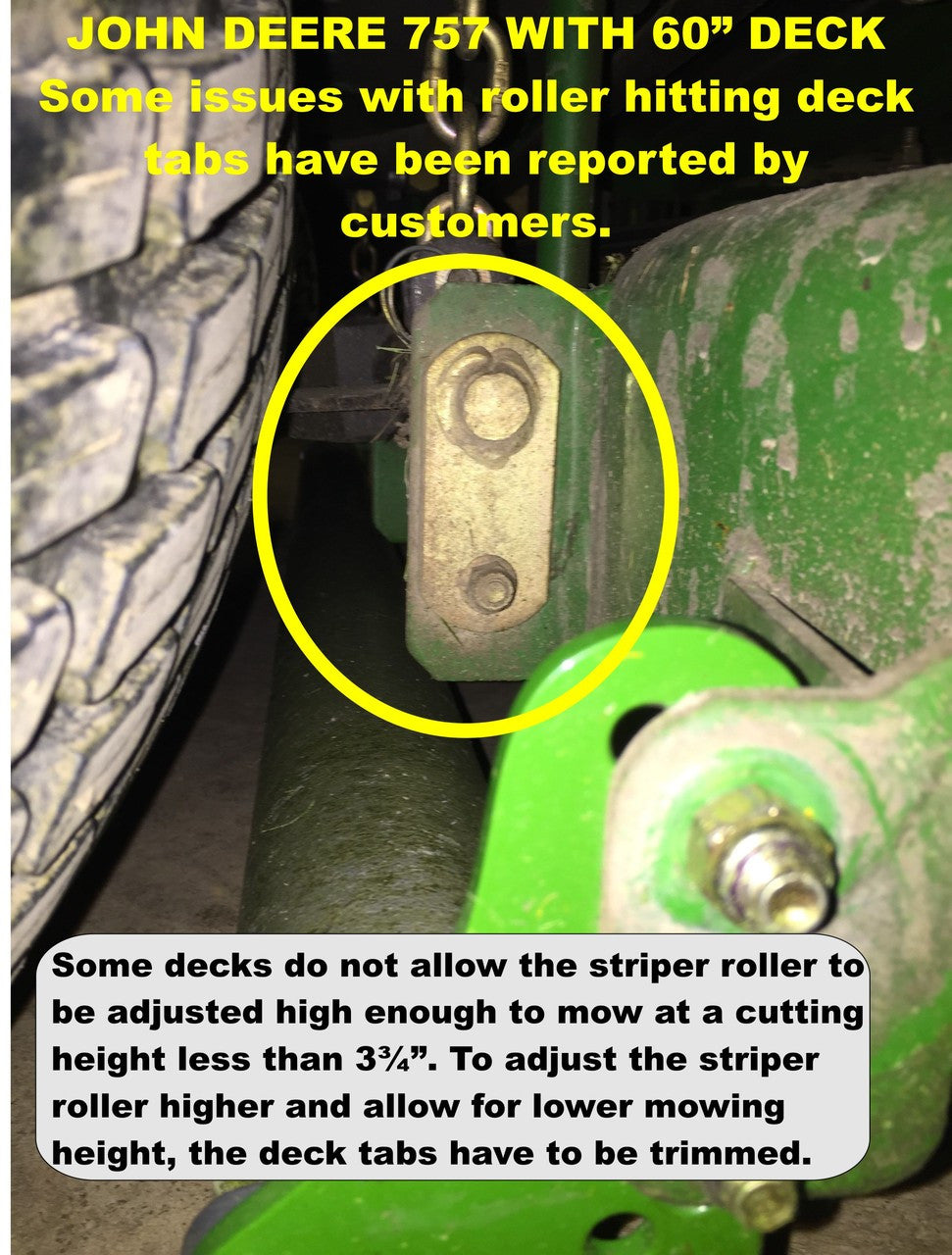

Some issues with roller hitting deck tabs have been reported by customers. Please see above photo.
Some decks do not allow the lawn striper roller to be adjusted high enough to mow at a cutting height less than 3¾". To adjust the striper roller higher and allow for lower mowing height, the deck tabs have to be trimmed.

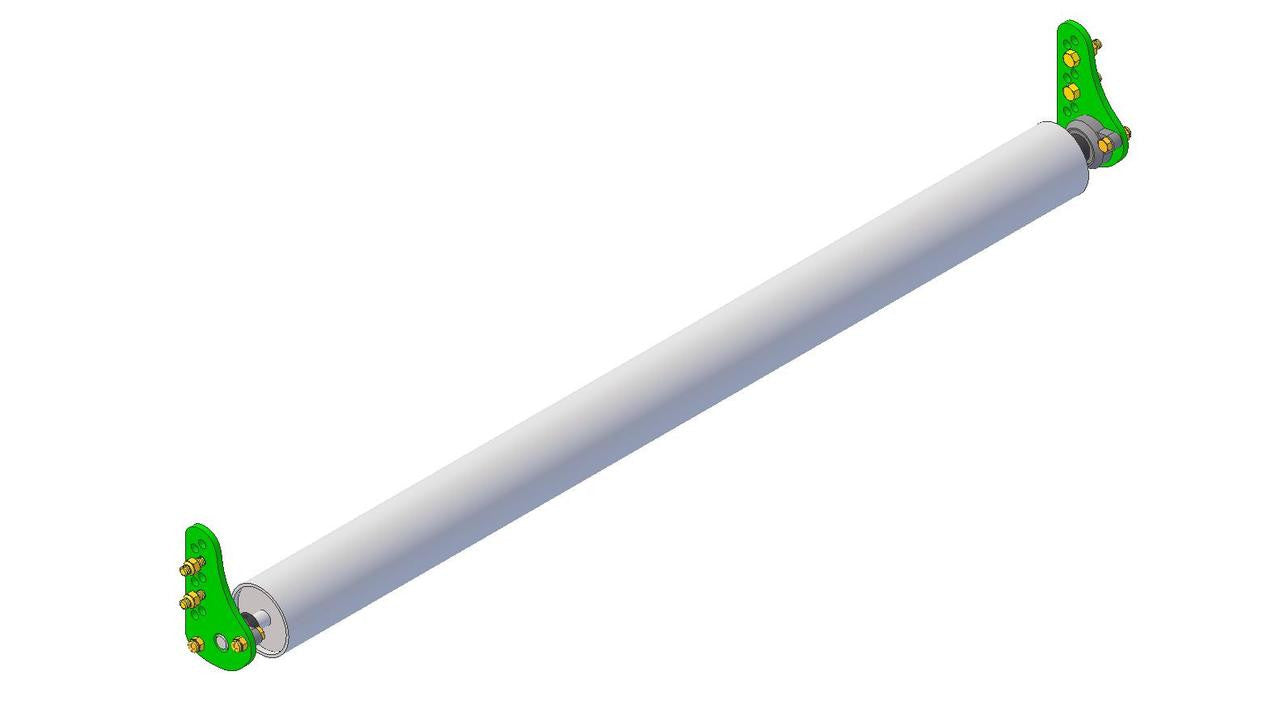

Lawn Roller Dimensions: Mounting shaft 51" length - Roller 3 inch diameter by 46.5" length.
May fit other years also. Please measure the distance between the anti-scalp wheel brackets on your machine. That distance should be 51" inches inside to inside. Please chat or call 763-201-8984 if you have any questions about this fitting your machine.
Bolts to the anti-scalp wheel brackets after the predrilled holes in the brackets are drilled out to 3/8". No other modifications to the machine are required. Watch our YouTube Video for correct installation of black eccentric locking collars.
Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket turf stripers since 2006 with thousands in service.
Here's a video showing of the John Deere Z900 series with the Pro 54" 7 Iron deck 2008 to 2014 lawn striper. The process will be similar when installing the lawn striping kit featured on this web page.
Customer service and technical inquiries always welcome. Please chat or call 763-201-8984.

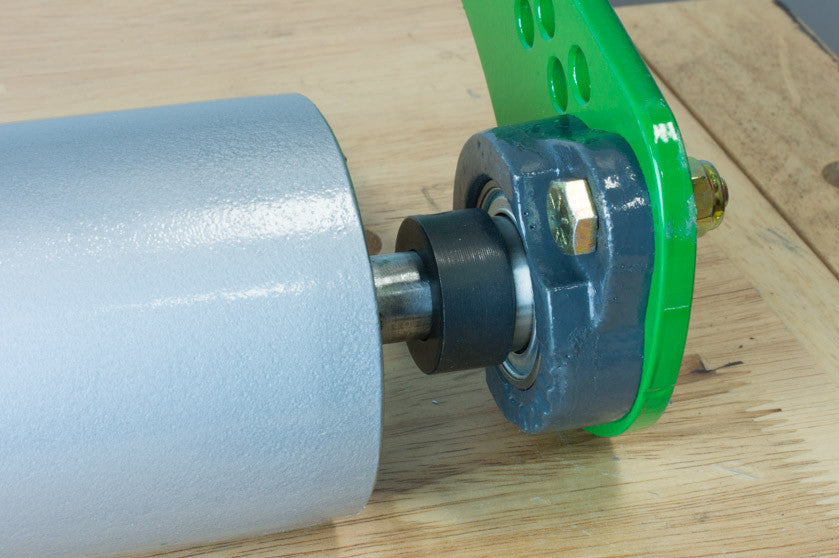

- Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

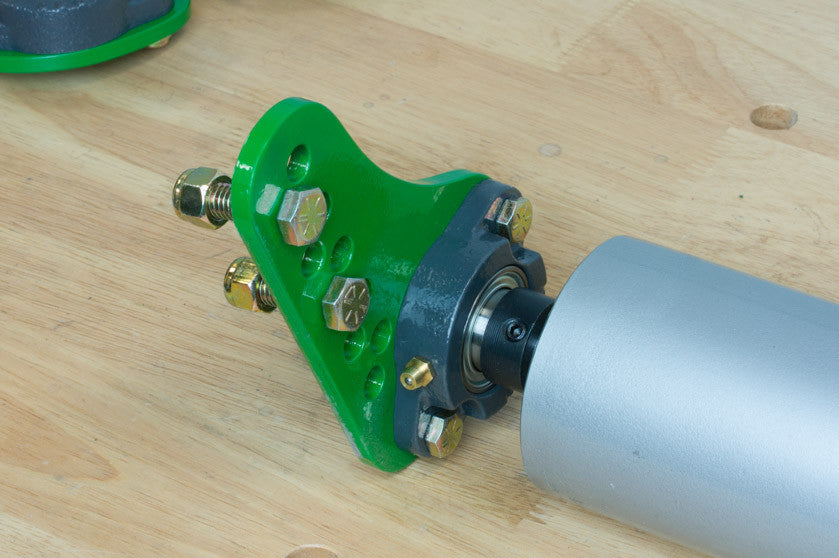

- Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
- All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
- Bolts are hardened grade 8
- Nuts are hardened grade 8 with nylon locking inserts.

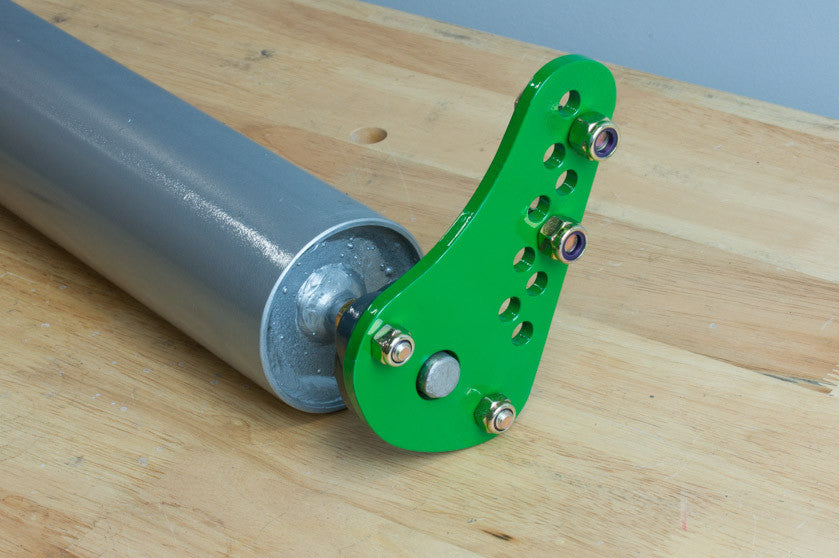

- Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.
- Does not hinder the ability to scale curbs.
- This lawn striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
- Gives lawns that professionally striped ball park look.
- Now you can mow and roll in one operation.

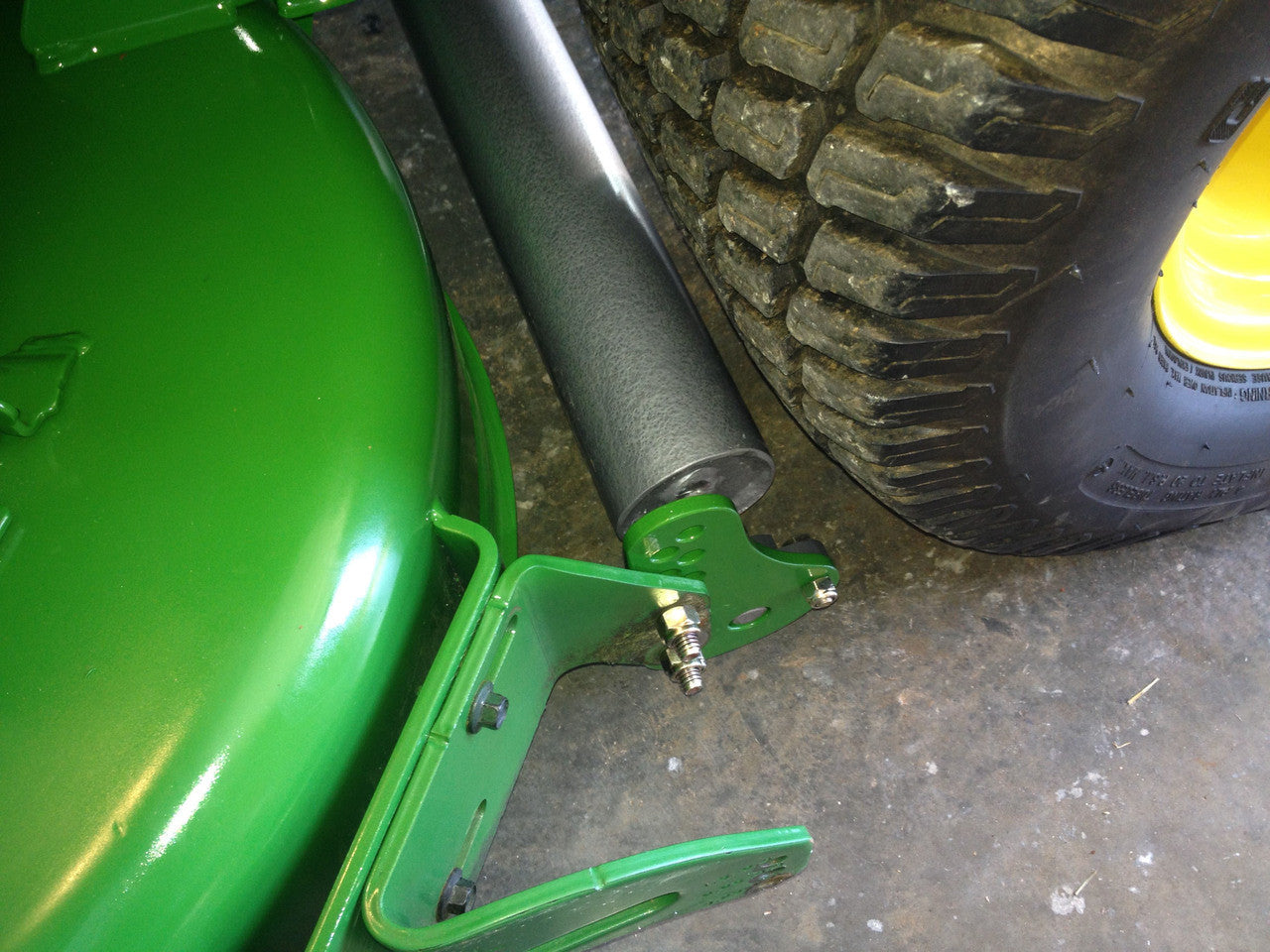

- Mounts on the mower deck anti-scalp wheel brackets.
- Please measure your deck to insure the proper fit. The distance between the anti-scalp will brackets should be 51" inside to inside.
