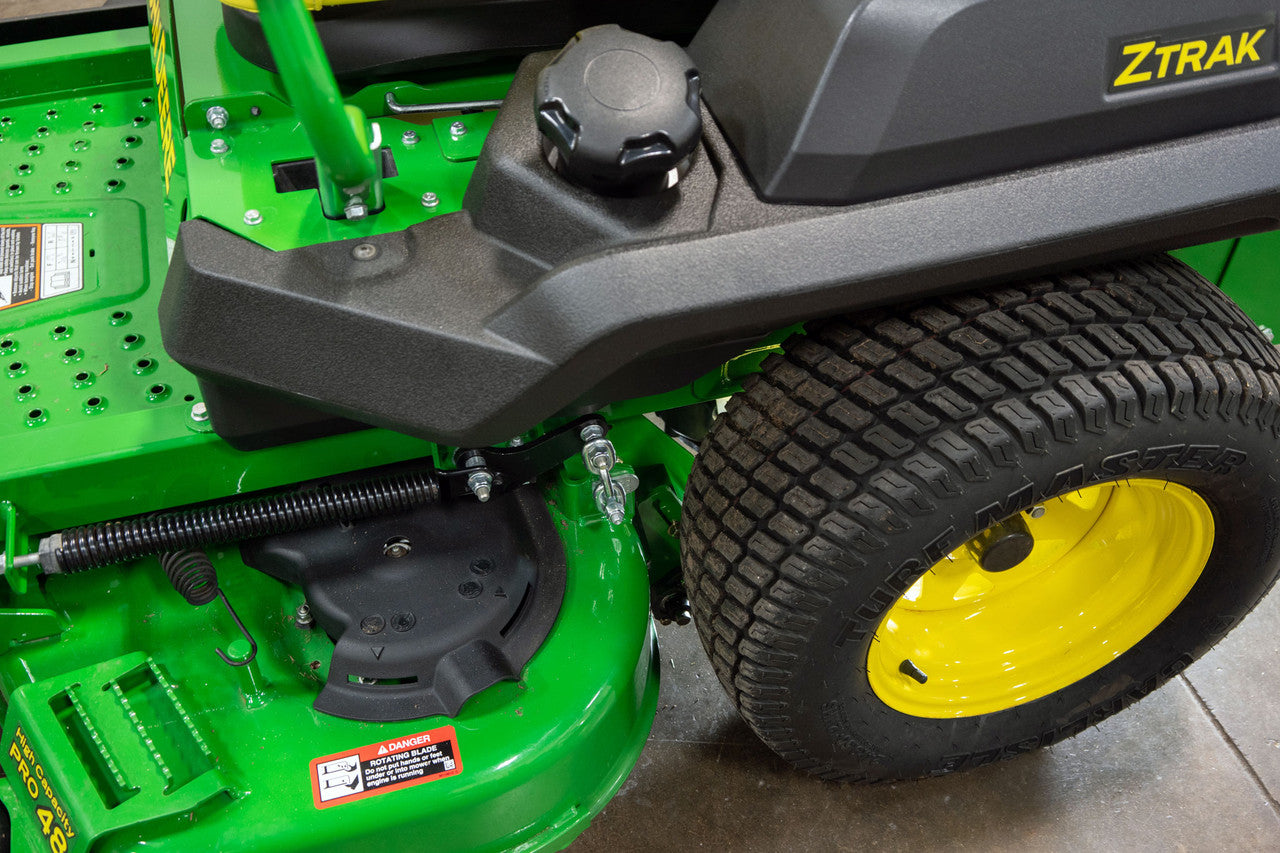

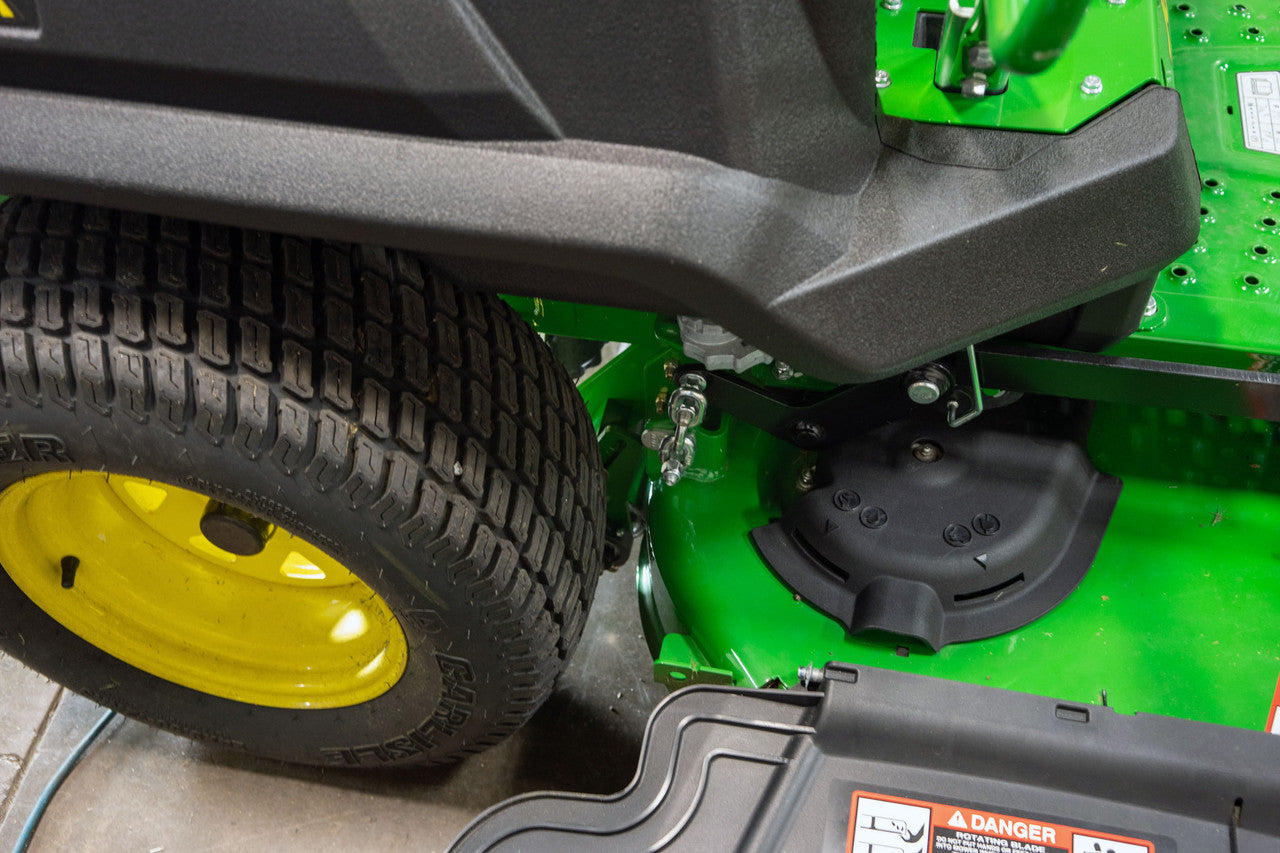

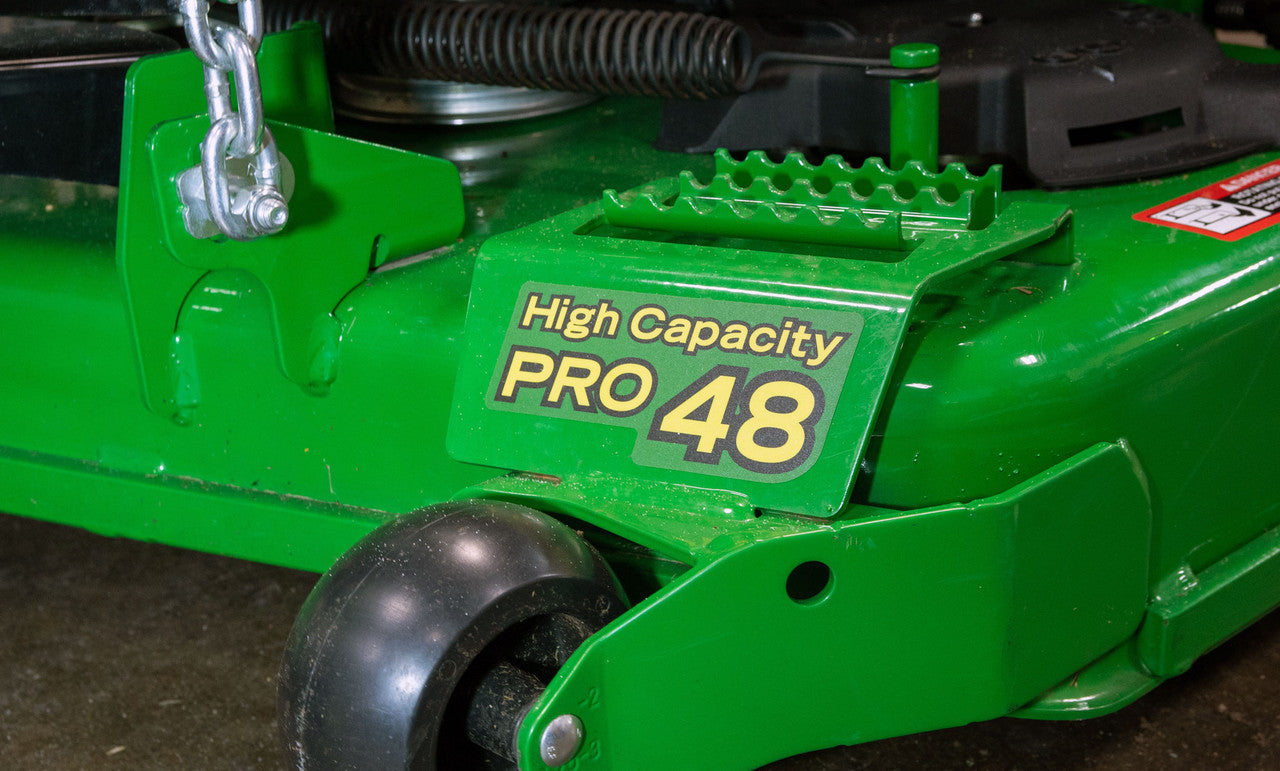

Lawn Striping Kit for 2019 John Deere Z740R with 48" High Capacity Pro Mowing Deck and Tires (not Tweels).

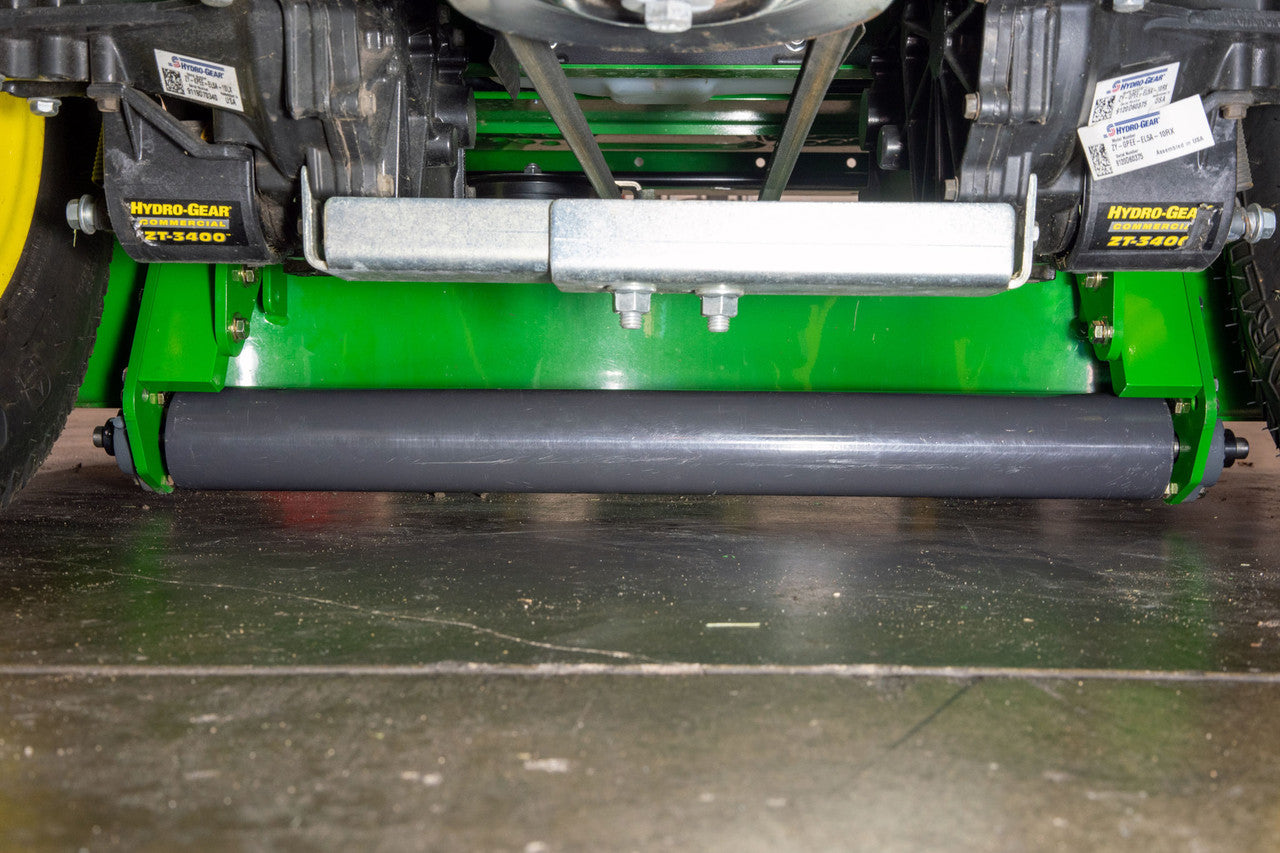

Roller Dimensions: Mounting Shaft 32.5" length - Roller is 3" in diameter by 27.5" Length.
NOTE: With striper installed, lowest mowing height is 3". You cannot mow at 2.75" or 2.5" with striper installed as the roller will contact the tire.

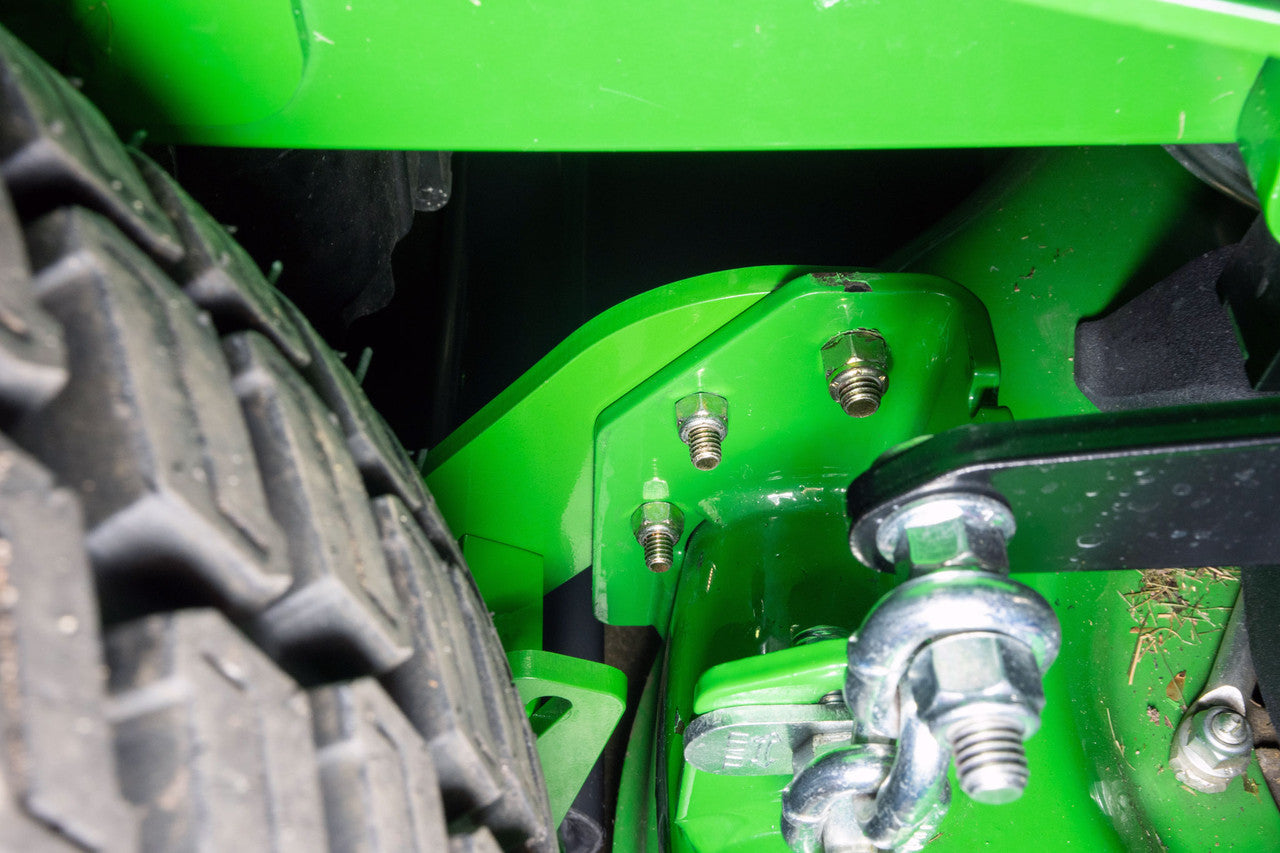

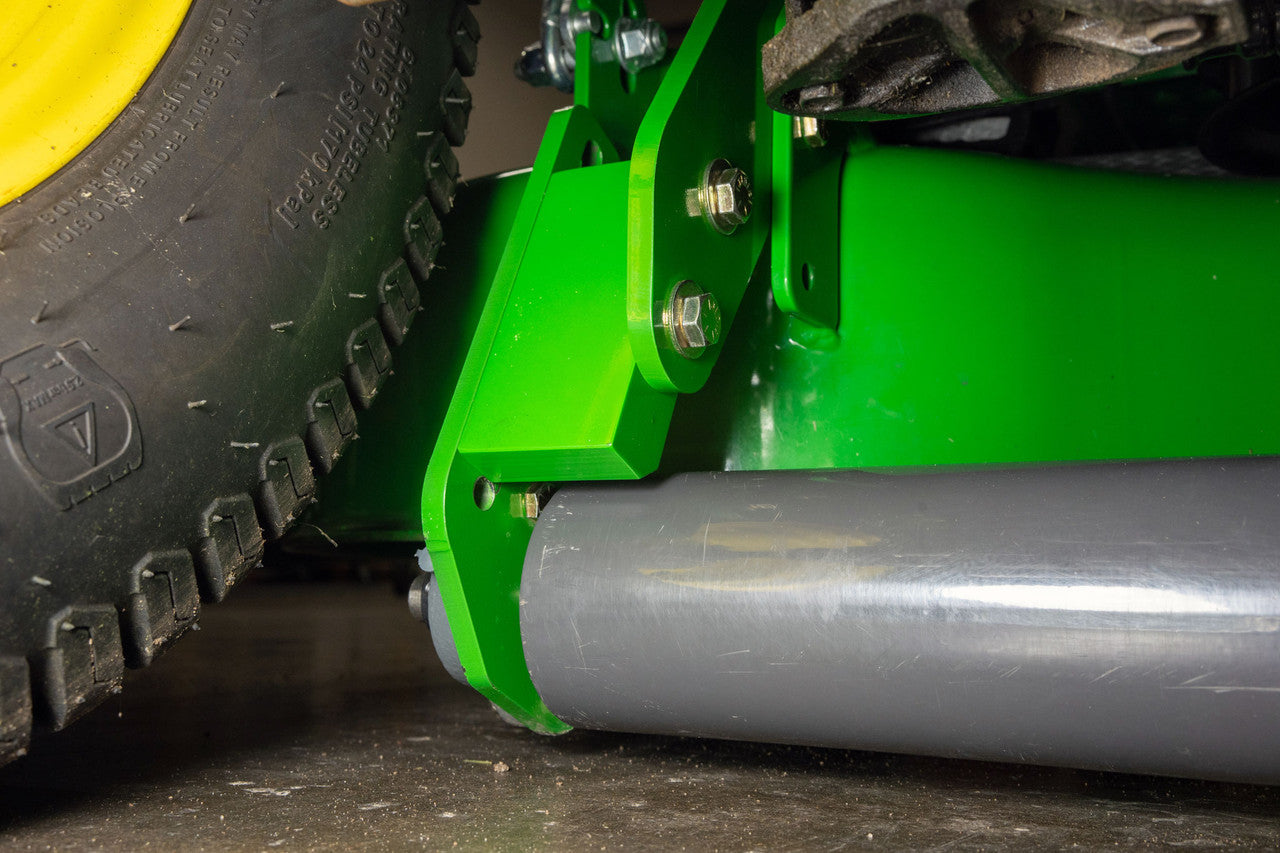

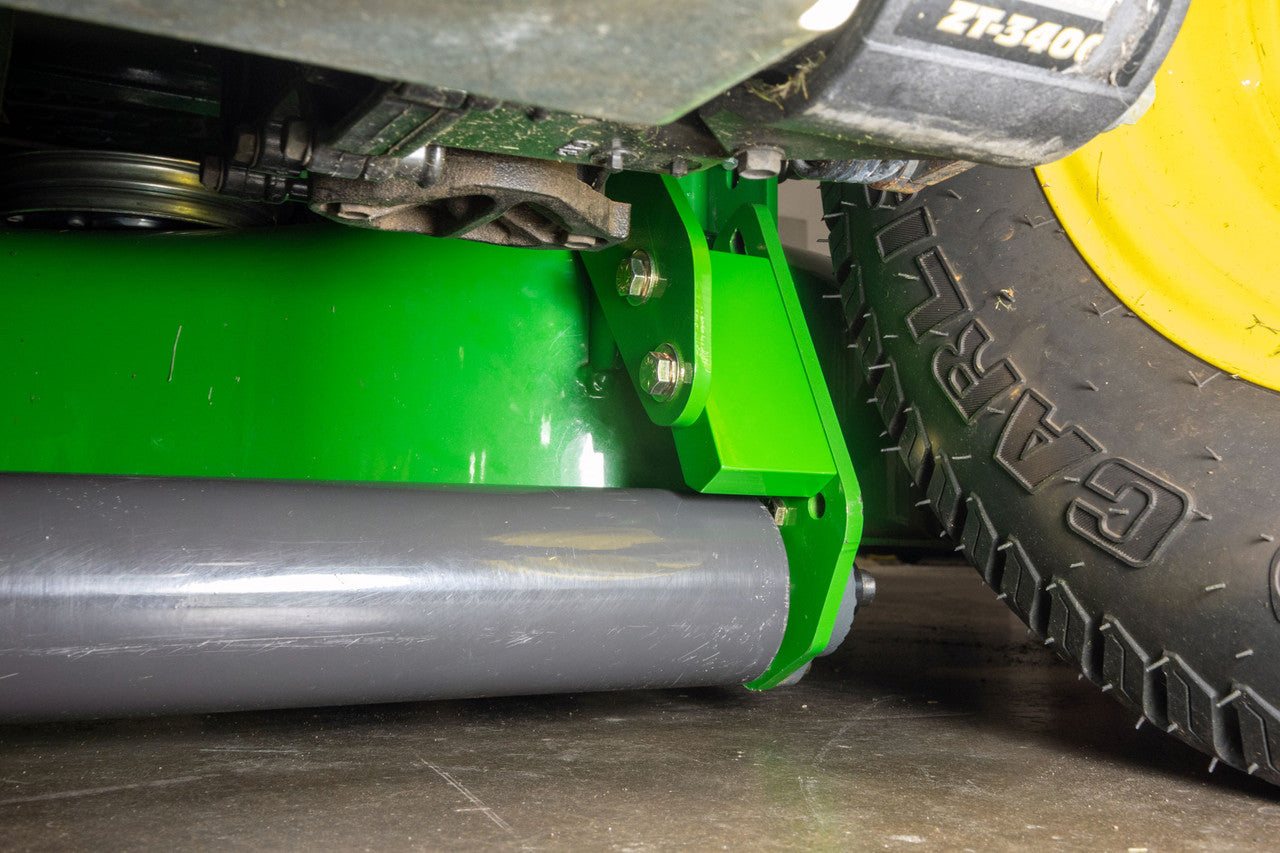

This kit bolts onto existing holes in the back of the deck. No deck modifications are required. The spacing between the brackets on the rear of the mower deck must be in order for this kit to bolt on.
Customer service and technical inquiries always welcome. Please email or text/call 763-201-8984.
Special Features
Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

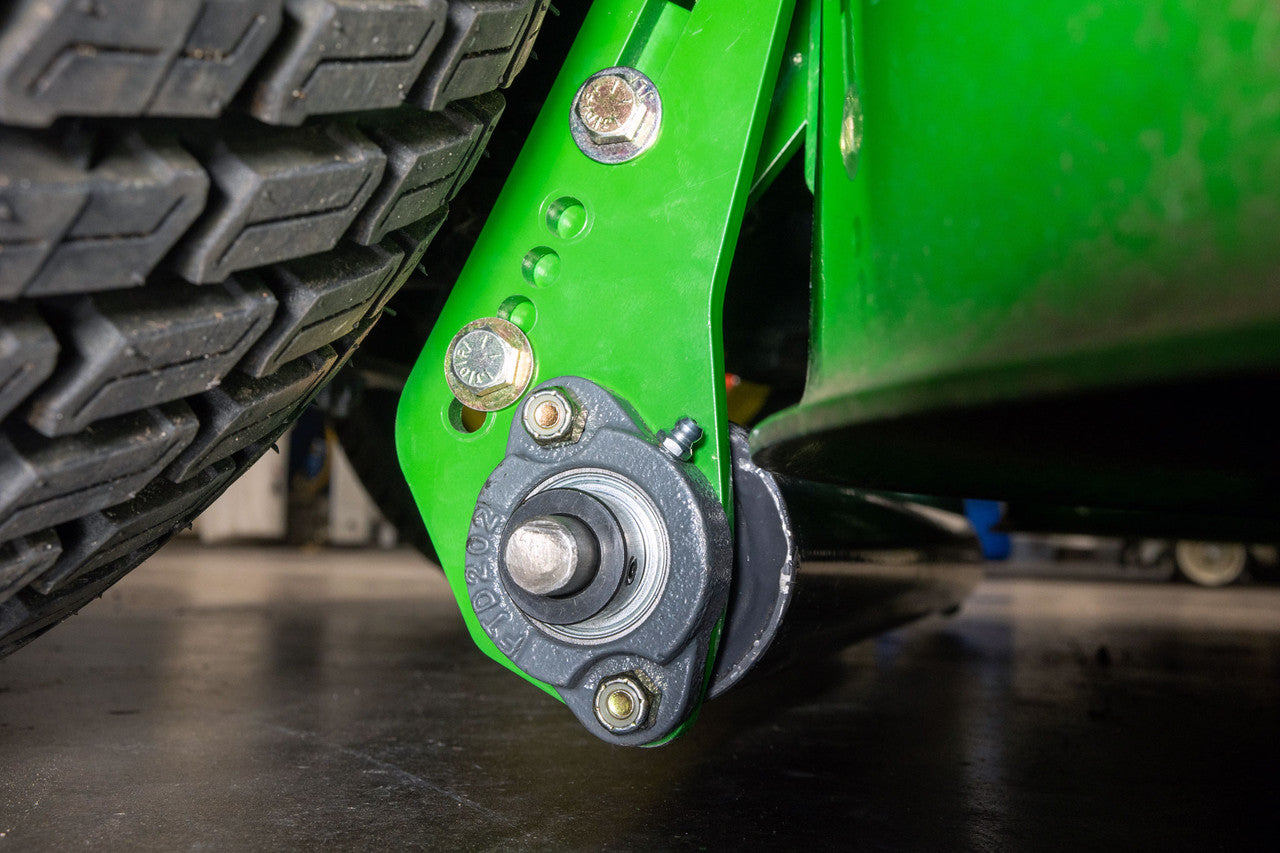

Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
All steel welded roller construction with powder coated finish. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
Bolts are hardened grade 8
Nuts are hardened grade 8 with nylon locking inserts.
Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.
Other Features
Does not hinder the ability to scale curbs.
This striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
Gives lawns that professionally striped ball park look.
Now you can mow and roll in one operation.
Mounts on the mower deck predrilled holes.
Please measure your deck to insure the proper fit.
