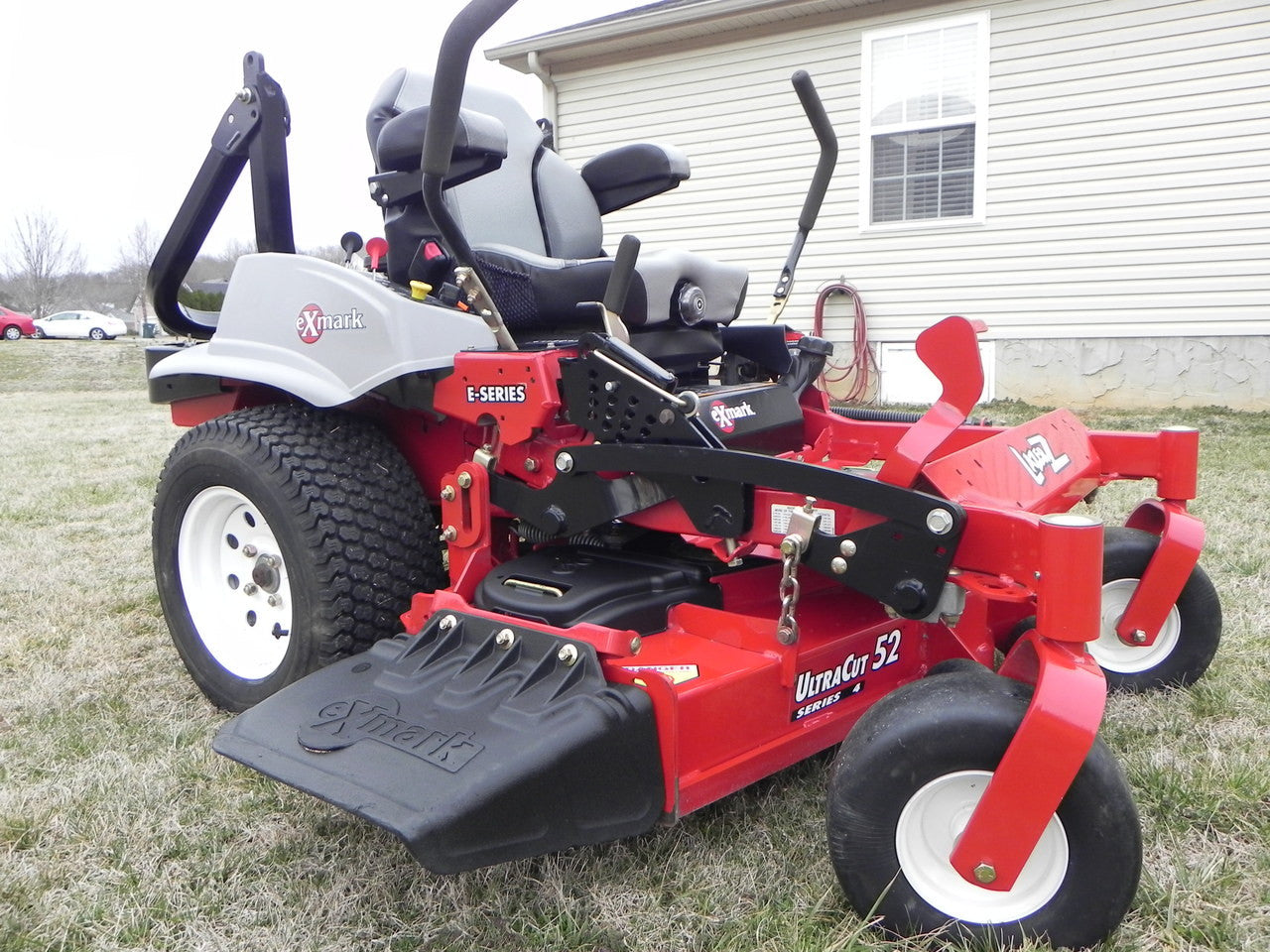

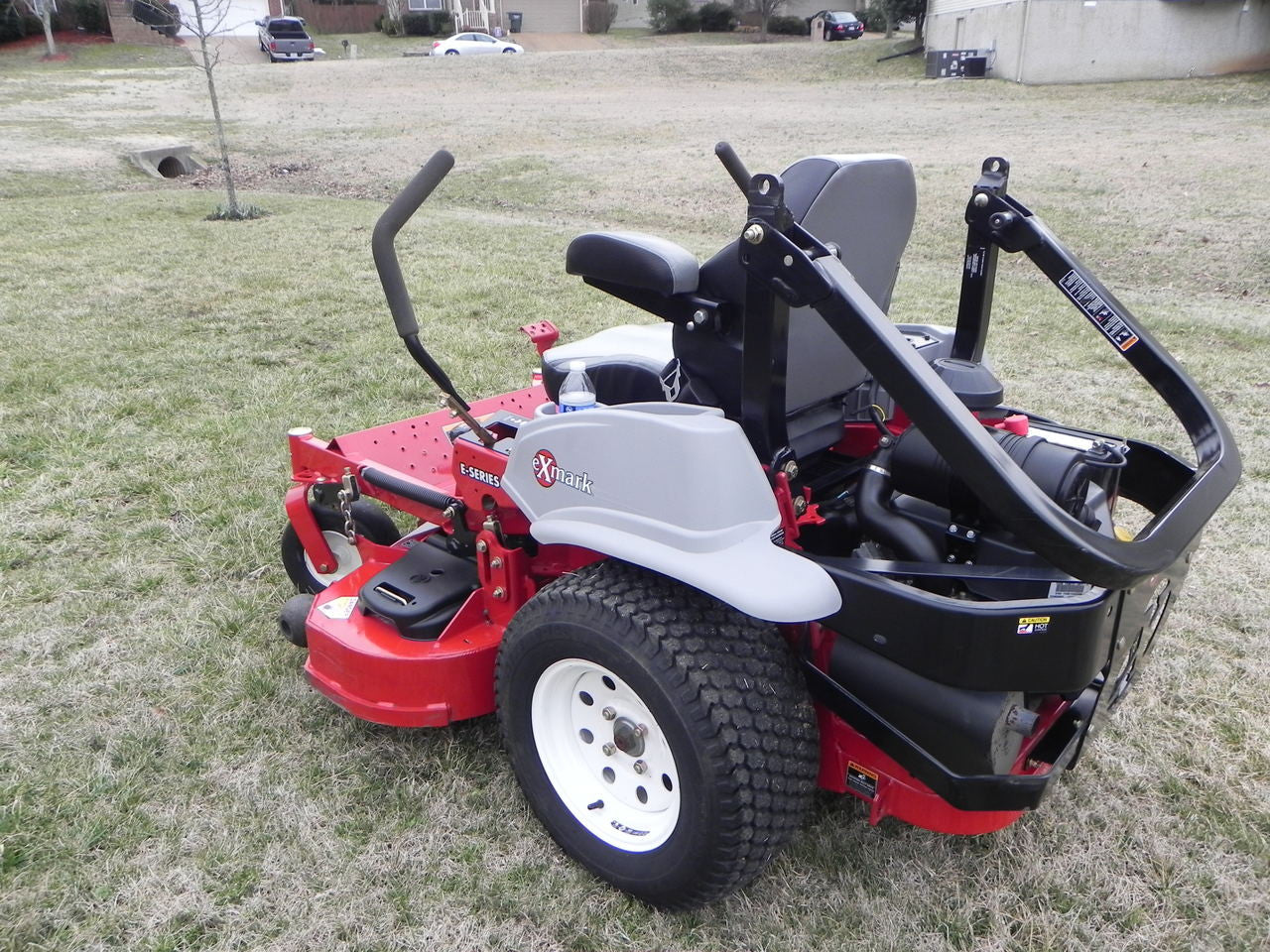

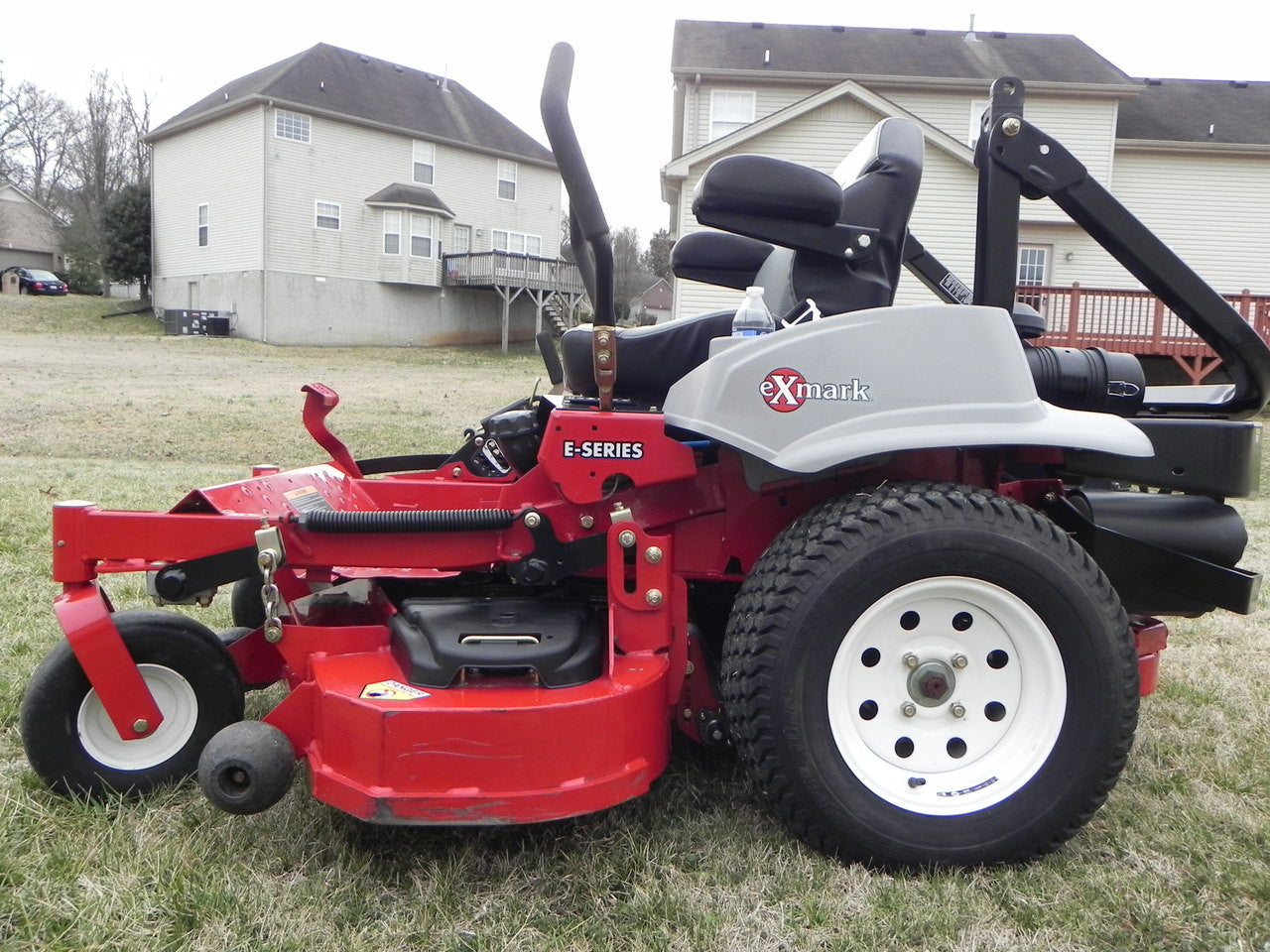

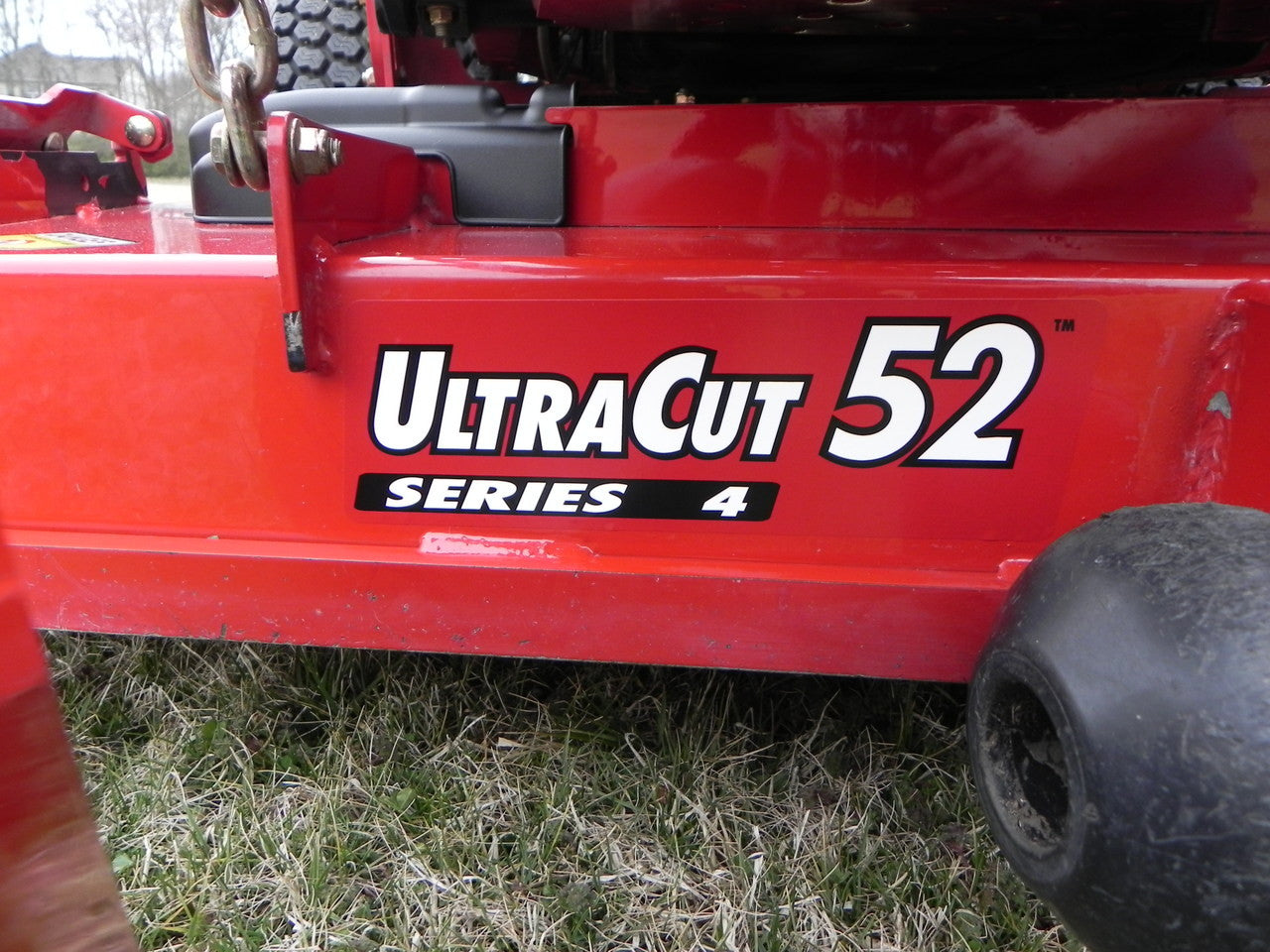

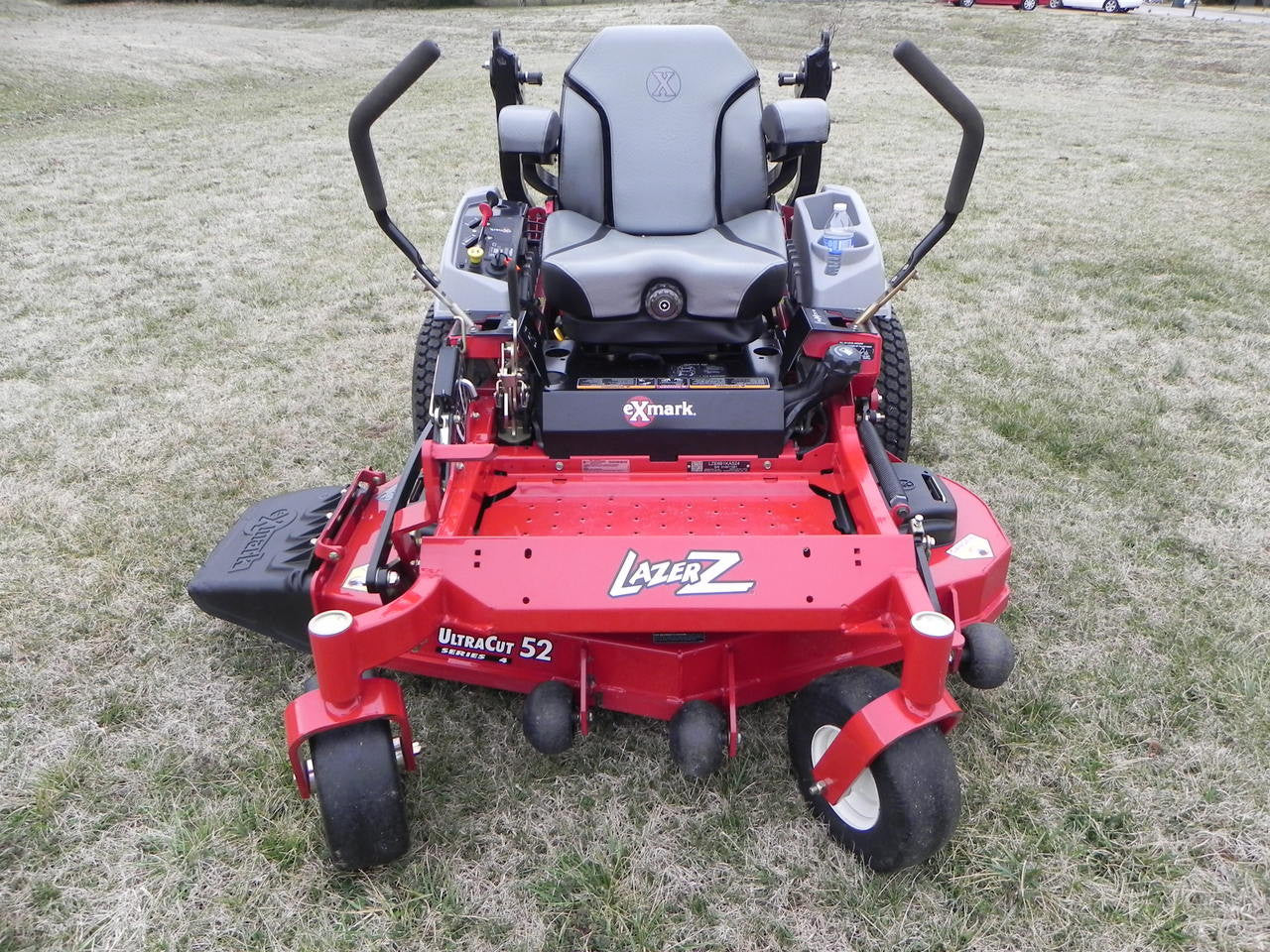

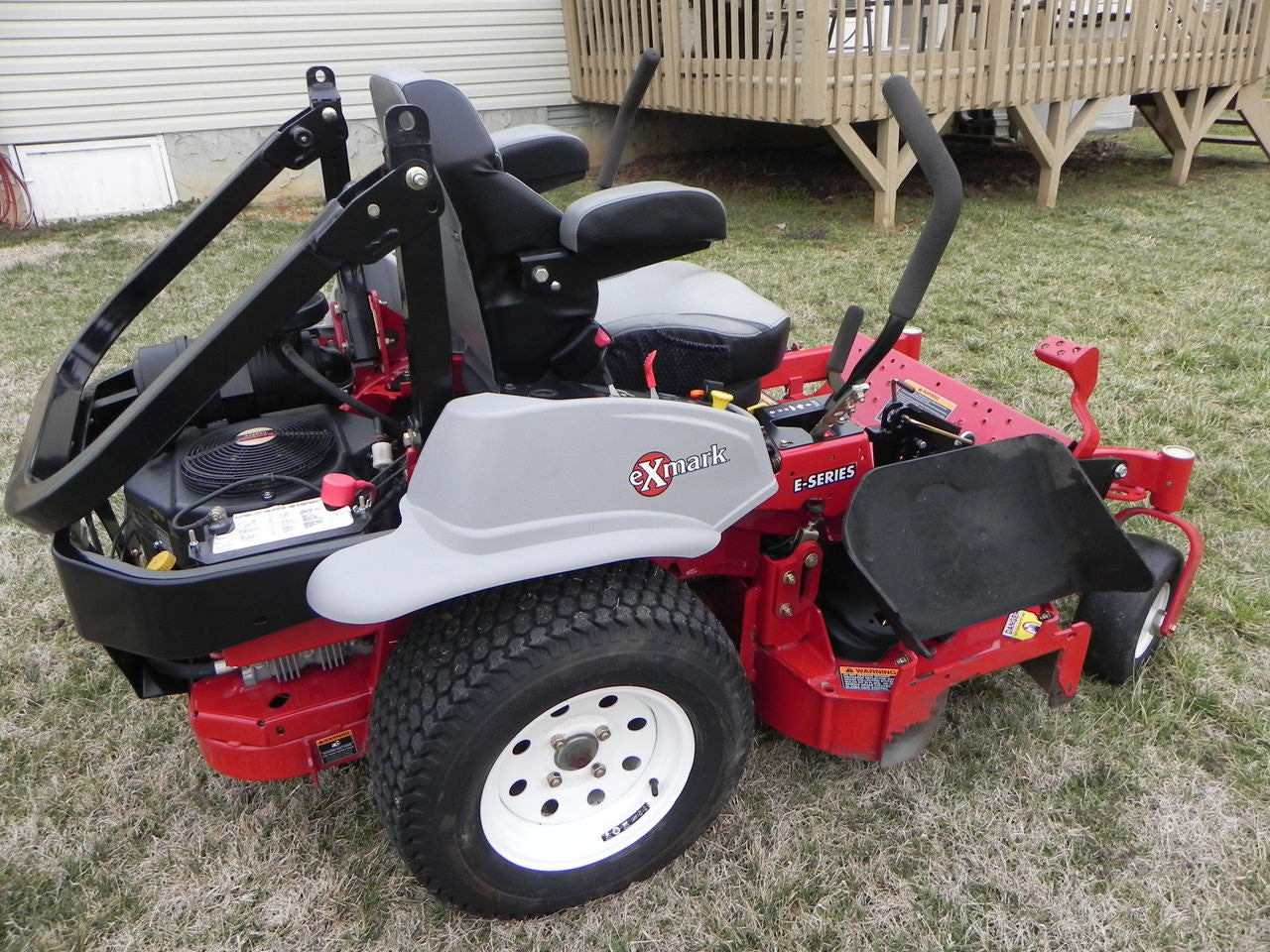

Lawn Striping Kit for eXmark Lazer Z E Series with 52" Ultra Cut Series 4 mower deck, model years 2011-2016. 2017 model please check hole spacing to verify fit as described below.
- Will also fit Lazer Z Advantage Series.
How do I know if it'll fit? Here's How:

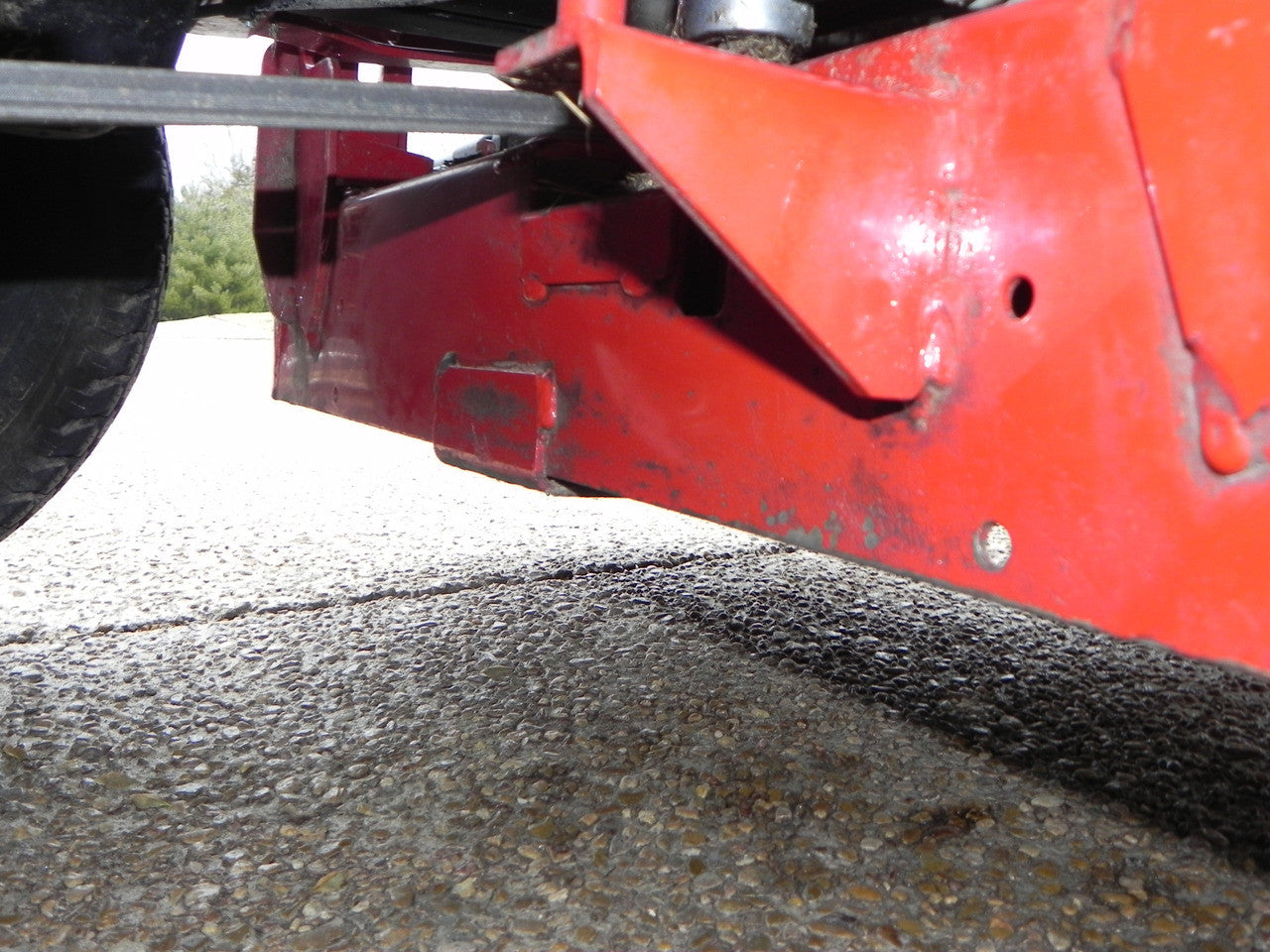

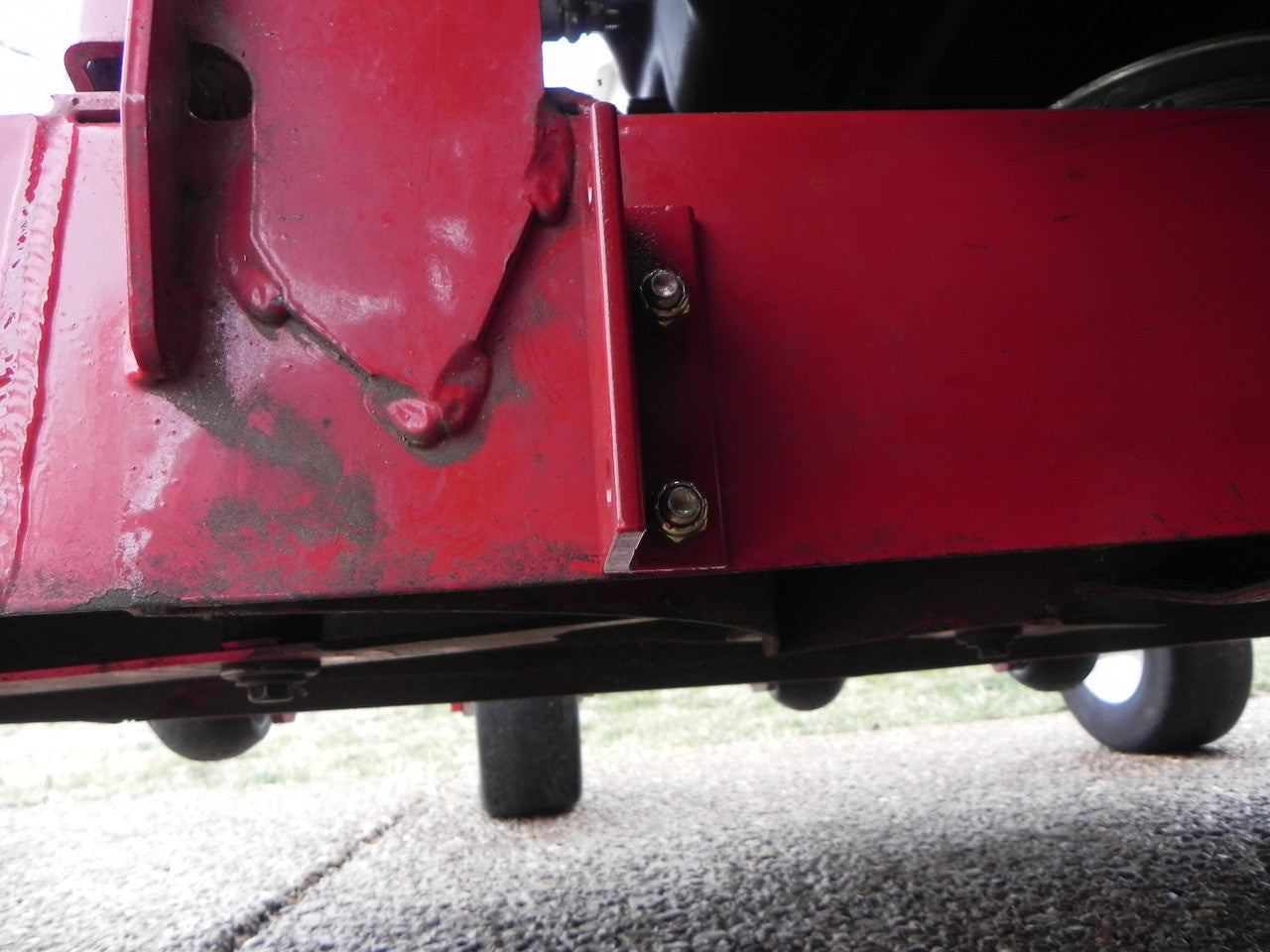

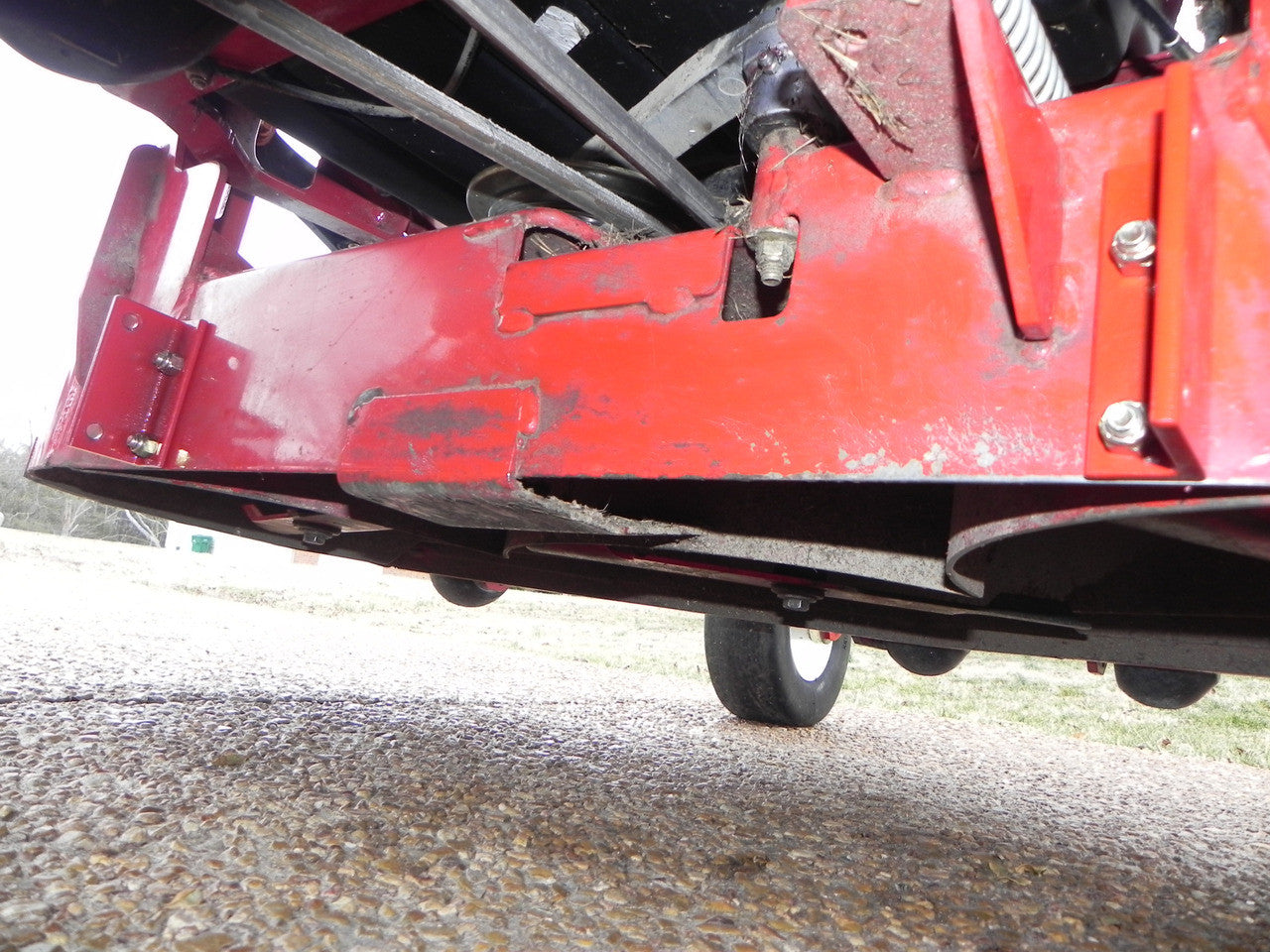

- Measure the distance center to center between the pre-drilled mounting holes on the back of your deck.
- The distance between these holes horizontally should be approximately 22-3/4 inches. The distance between the holes vertically center to center should be 2-1/4.
- Watch our YouTube Video for correct installation of black eccentric locking collars.

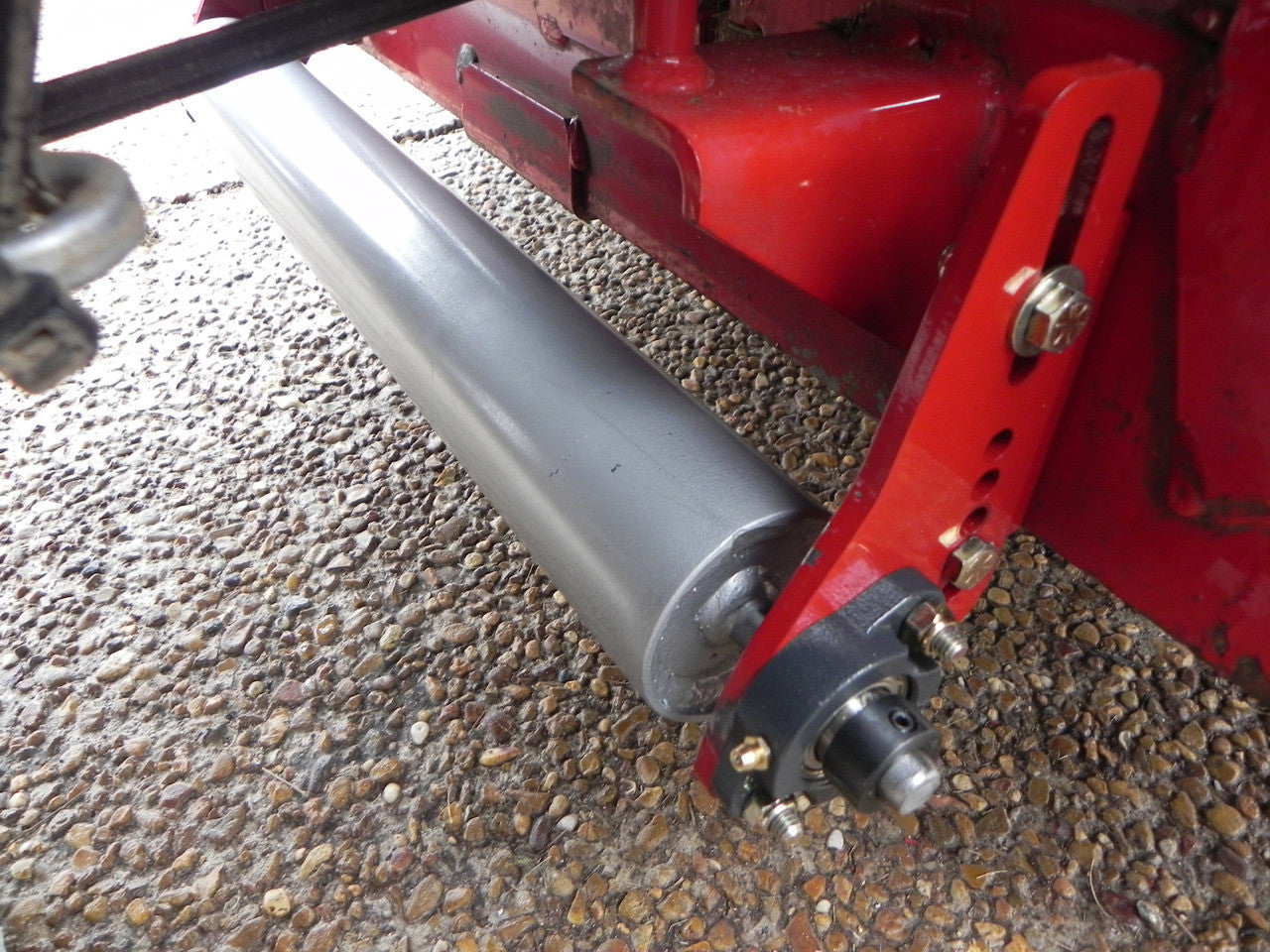

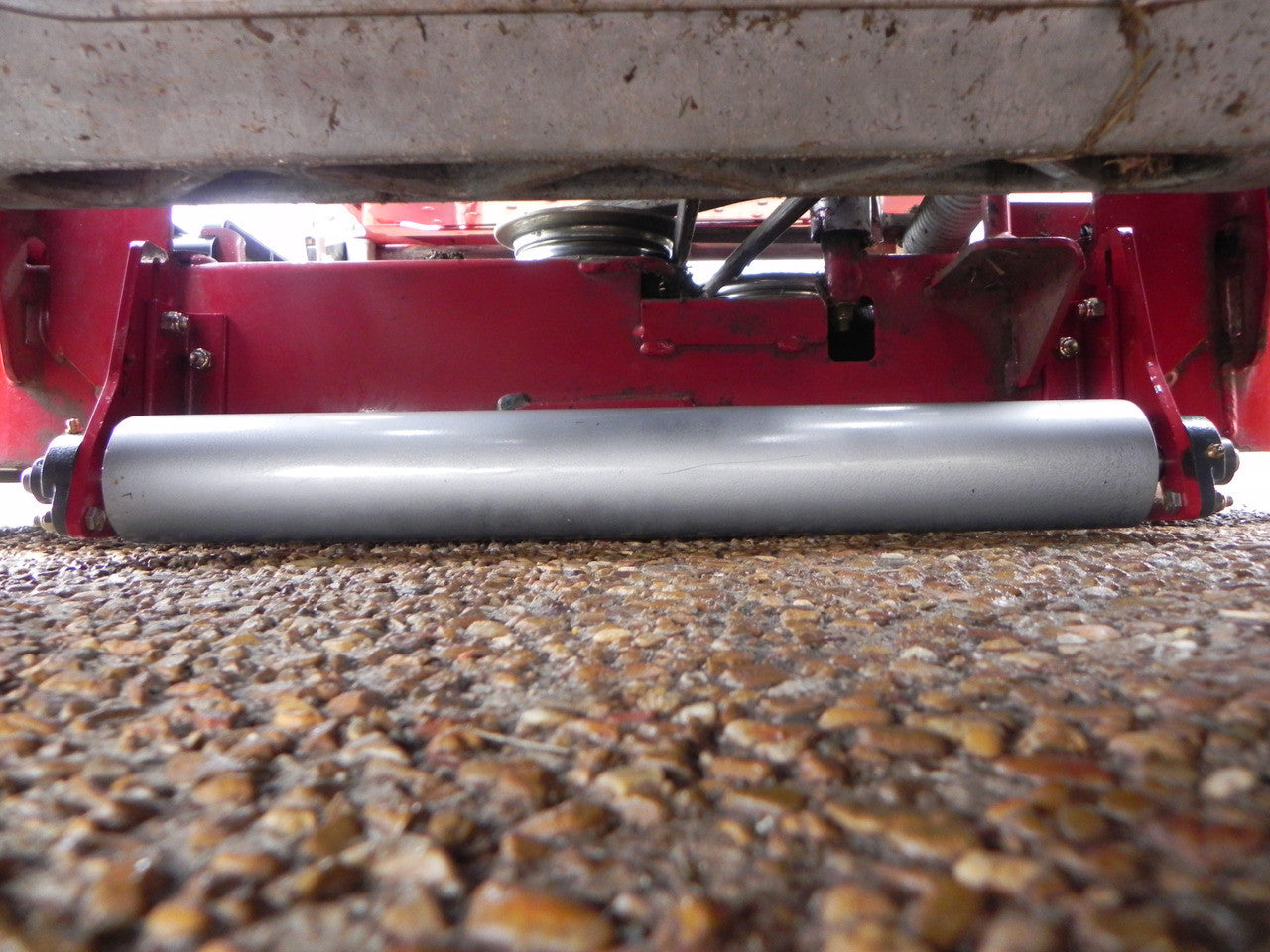

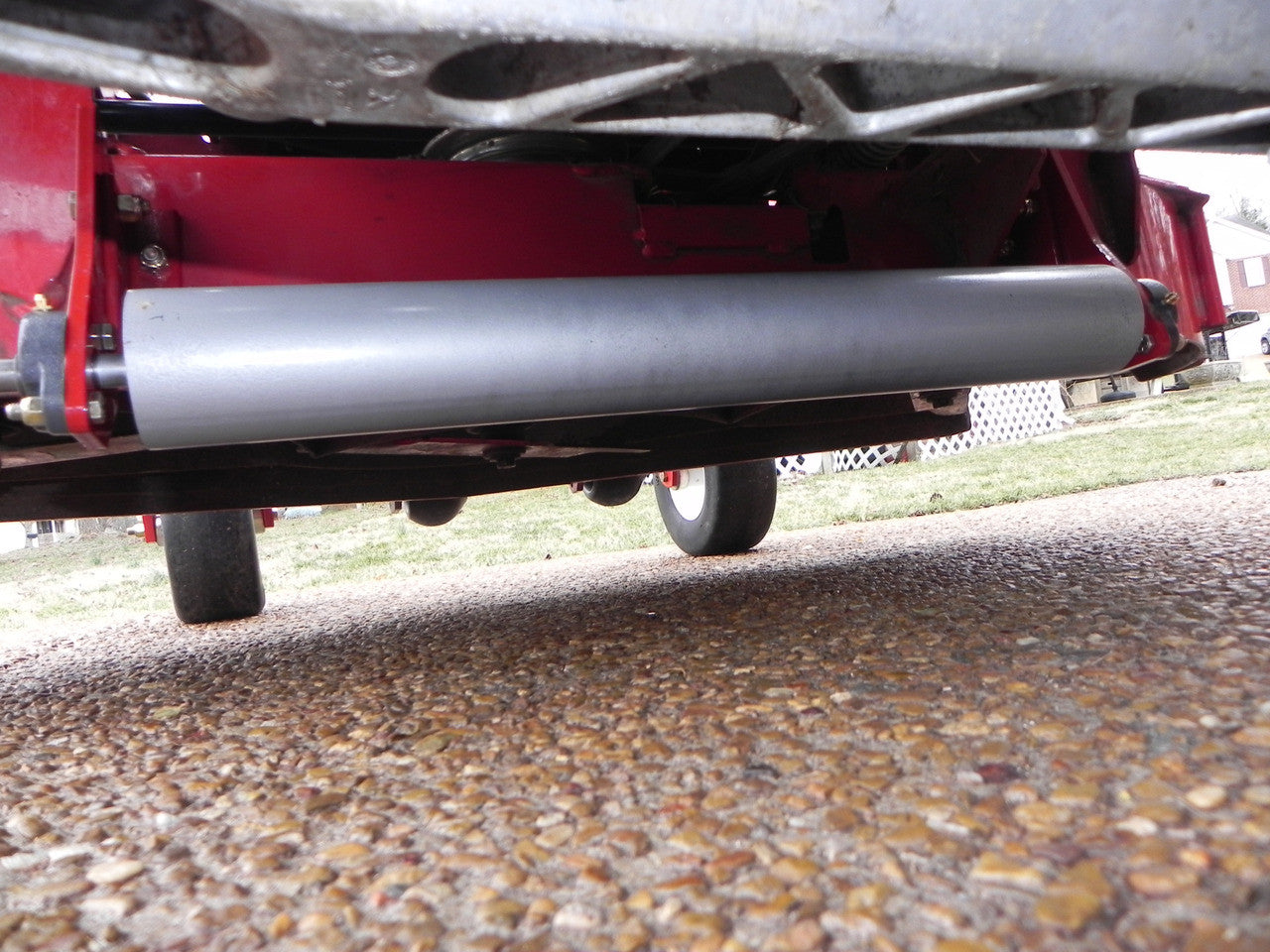

Roller Dimensions: Mounting shaft 28" length - Roller 3 inch diameter by 23" length.
This lawn striper will not fit:
- Pre 2009 Ultra Cut decks
- Triton decks all years
- Turf Tracer with ultra cut decks all years.
- You will find turf stripers for those machine HERE.
Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket lawn stripers since 2006 with thousands in service. Customer service and technical inquiries always welcome.
Customer service and technical inquiries always welcome. Please call Anne at 763-201-8984.
Hours 8 AM to 4:30 PM Monday through Thursday, central time zone, except 12 to 1 for lunch.

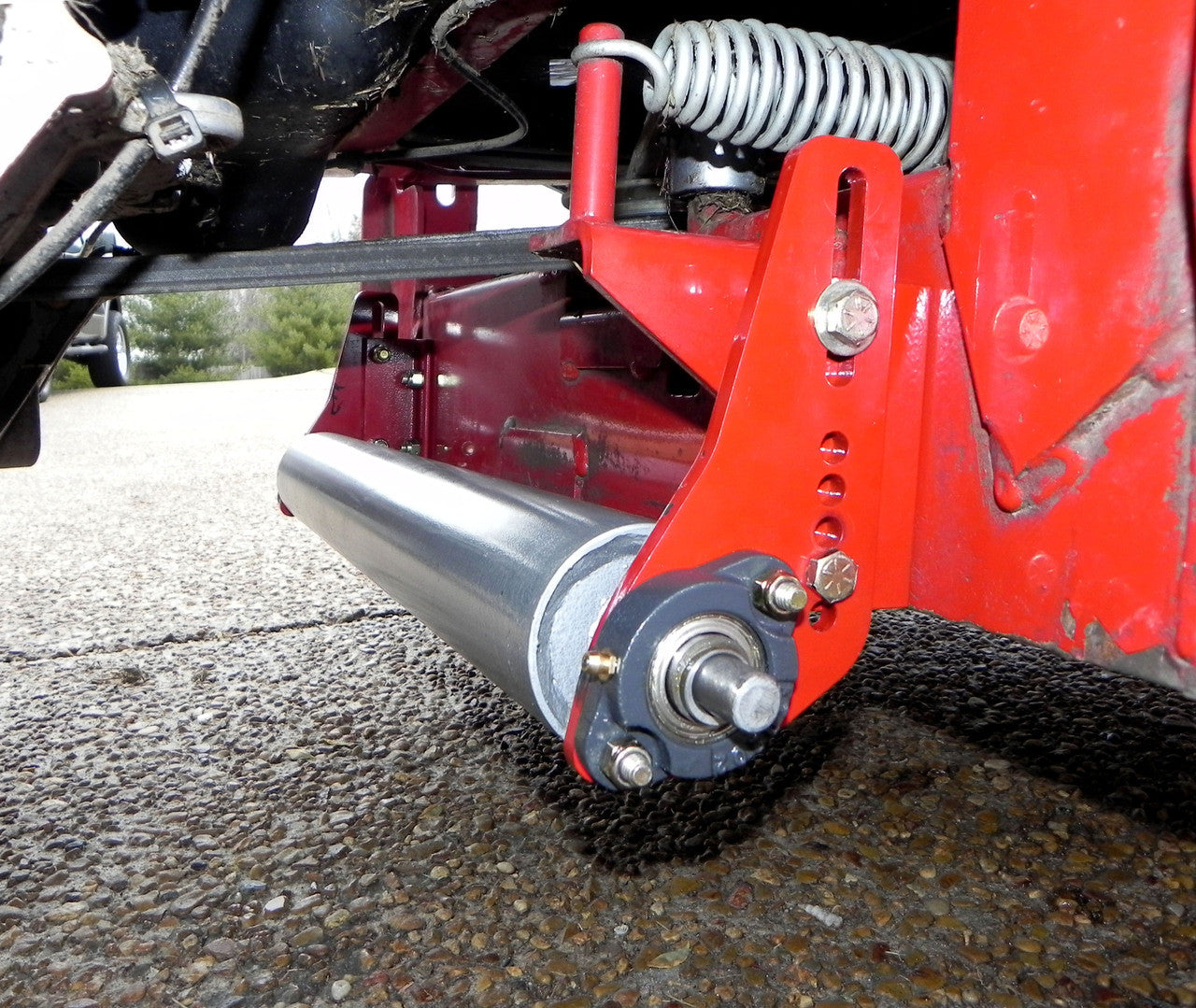

- Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

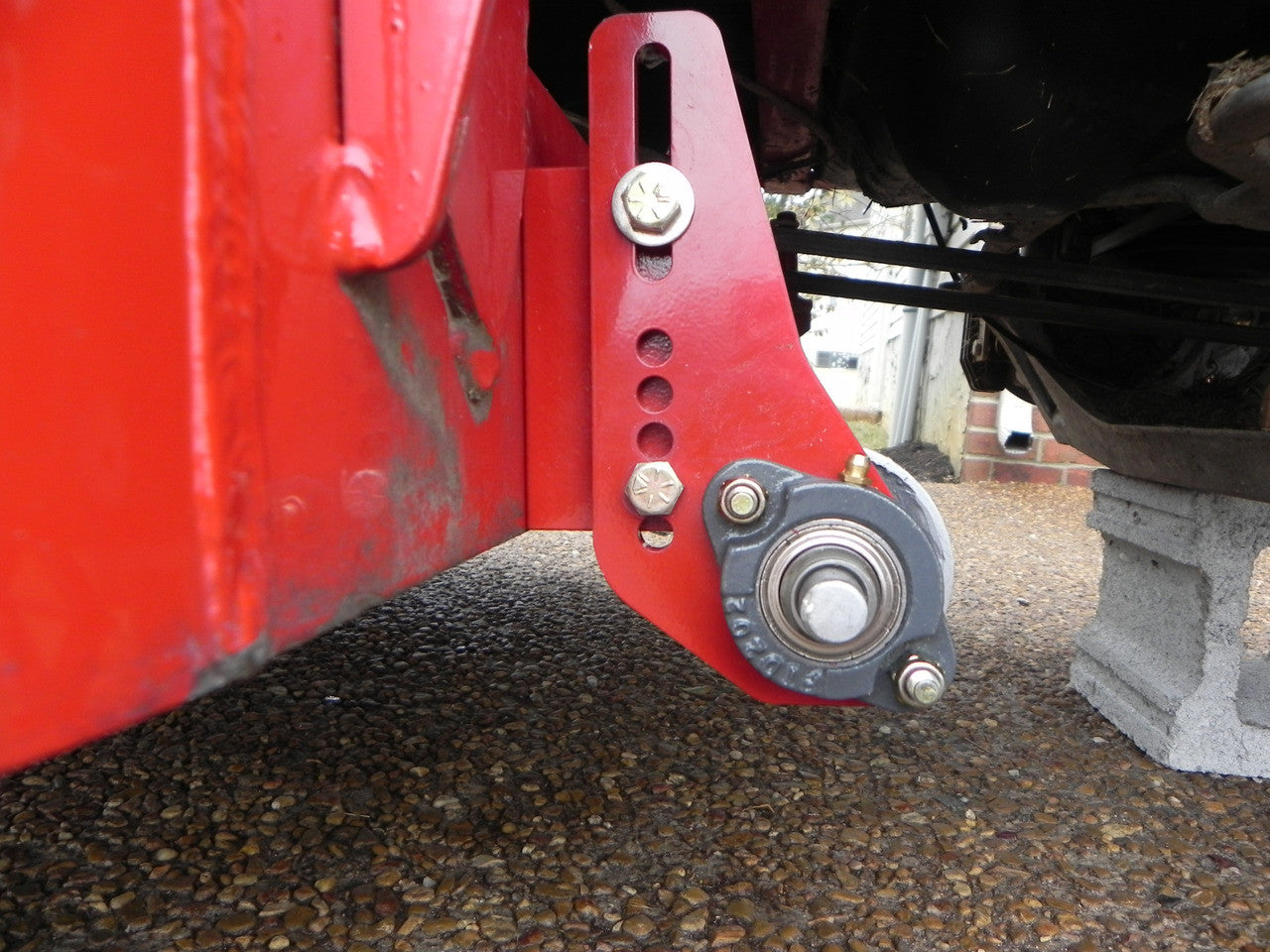

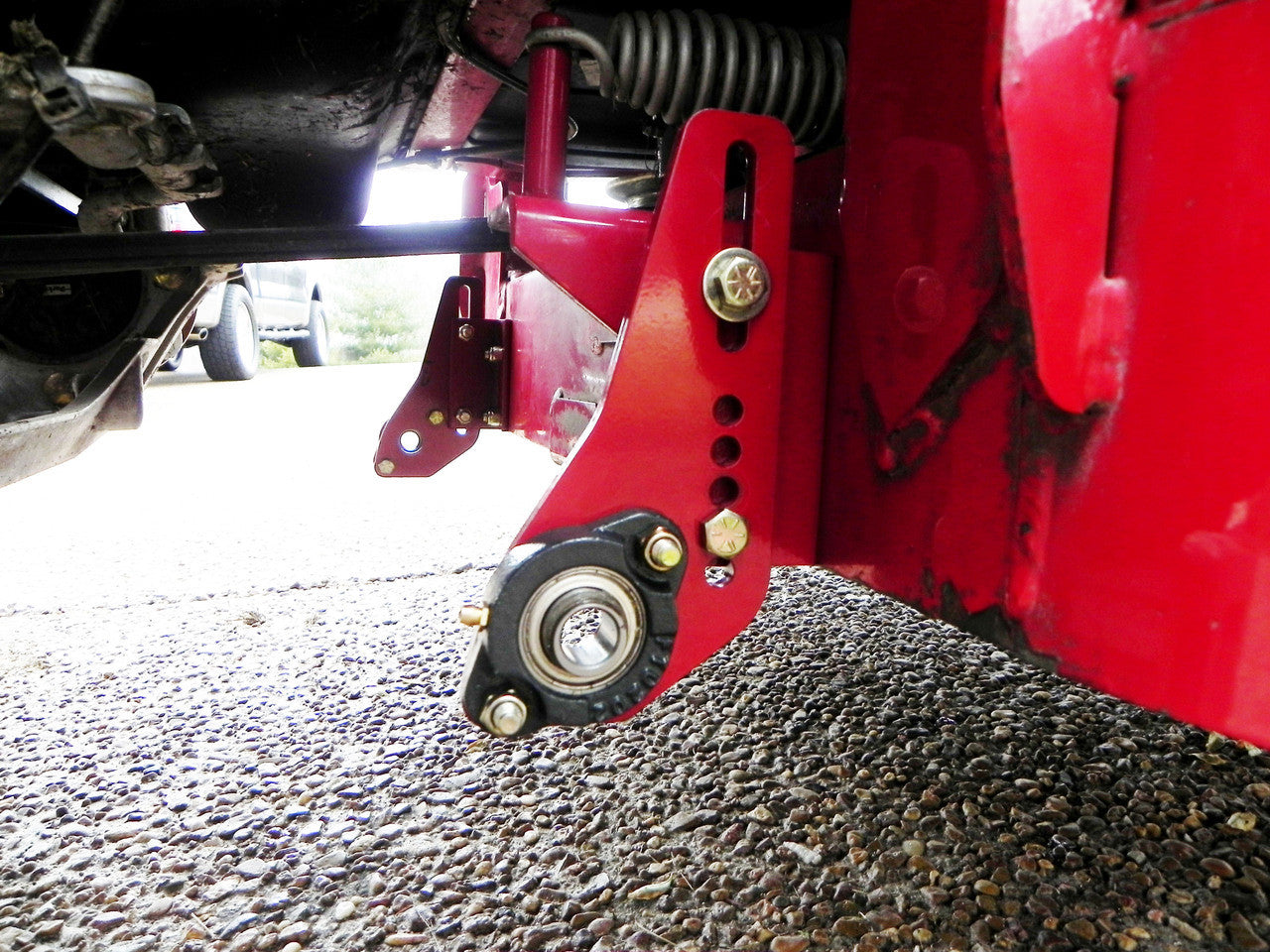

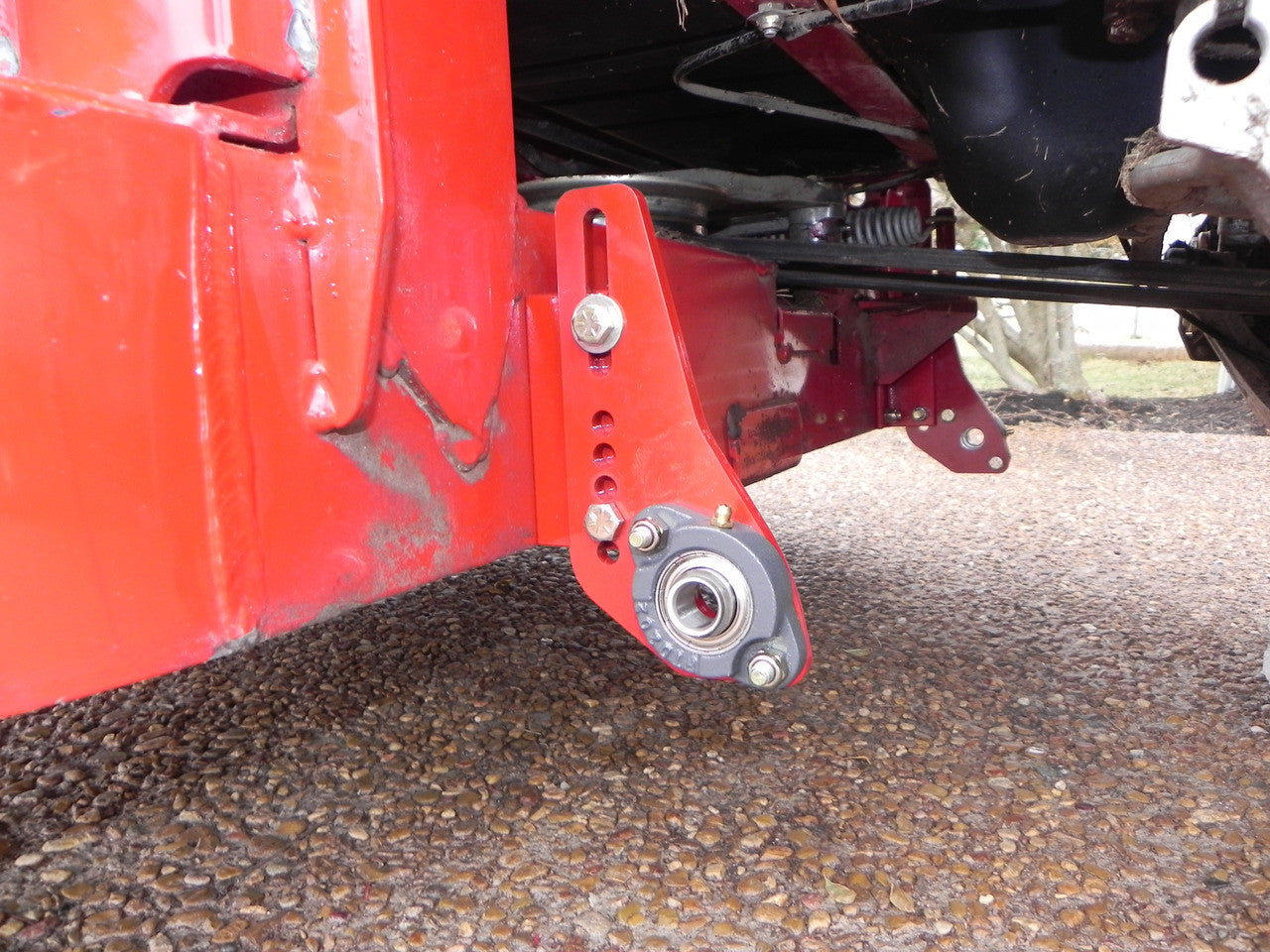

- Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
- All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
- Bolts are hardened grade 8
- Nuts are hardened grade 8 with nylon locking inserts.

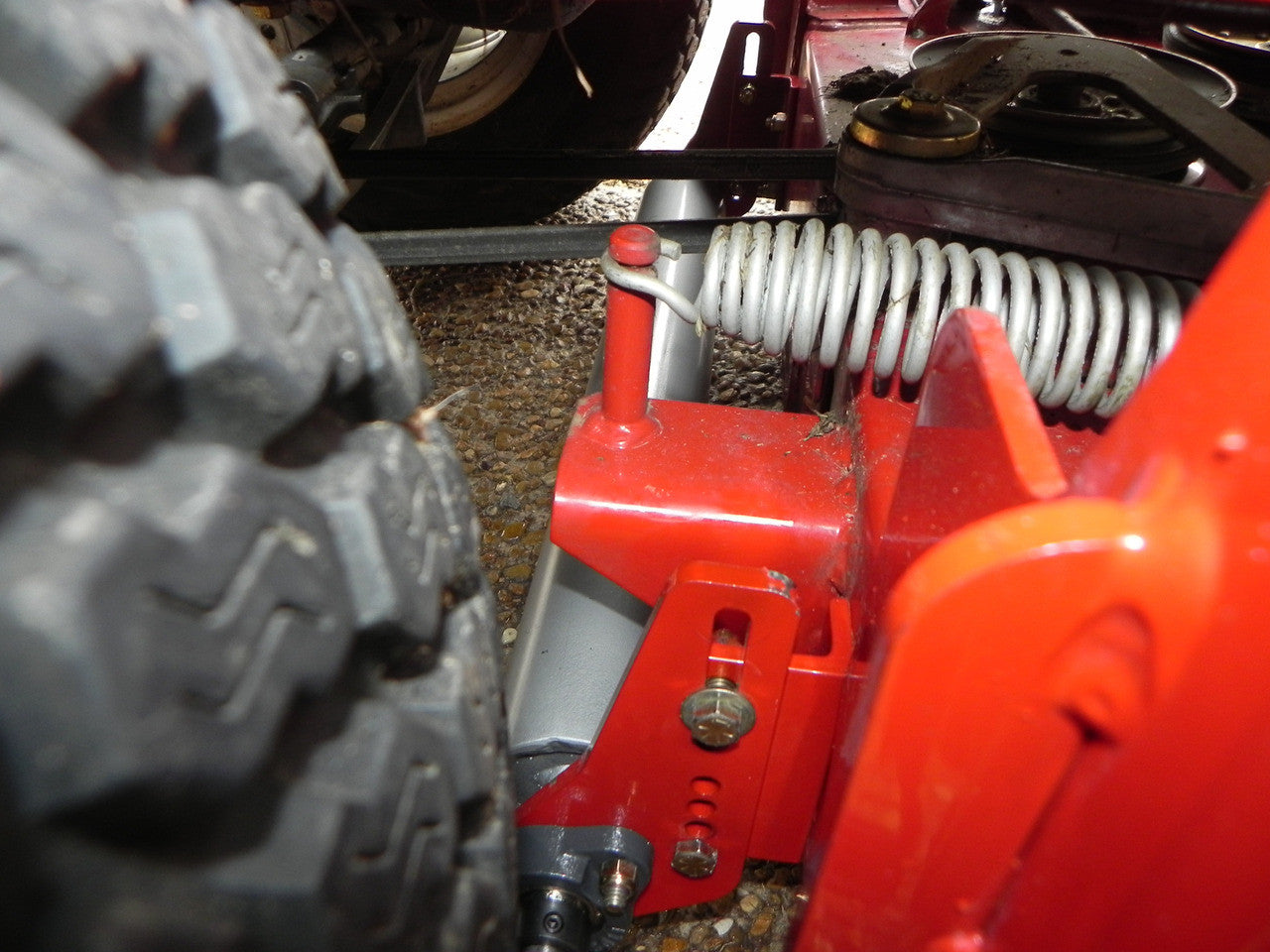

- Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.

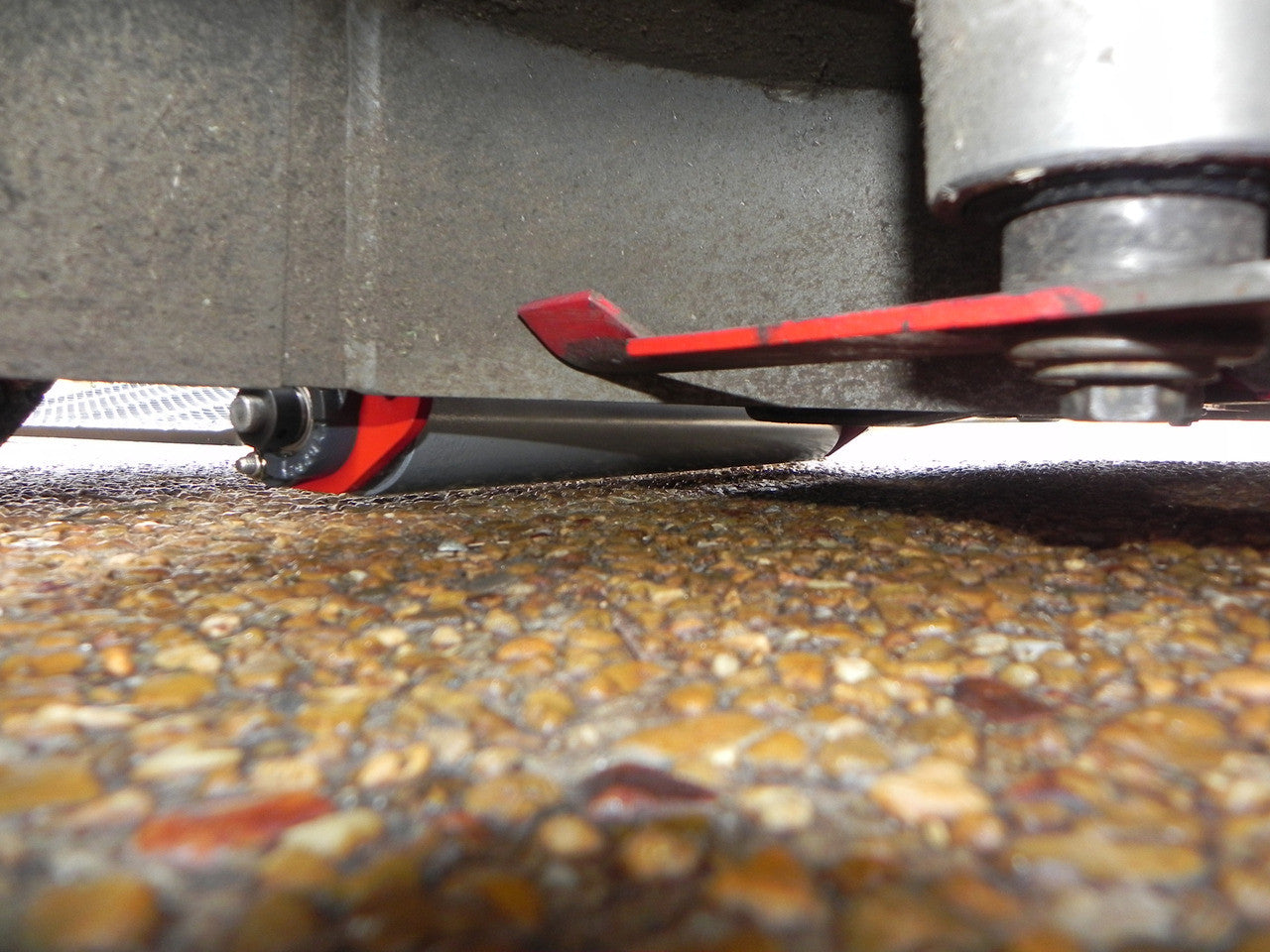

- Does not hinder the ability to scale curbs.
- This striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
- Gives lawns that professionally striped ball park look.
- Now you can mow and roll in one operation.
- Please measure your deck to insure the proper fit.

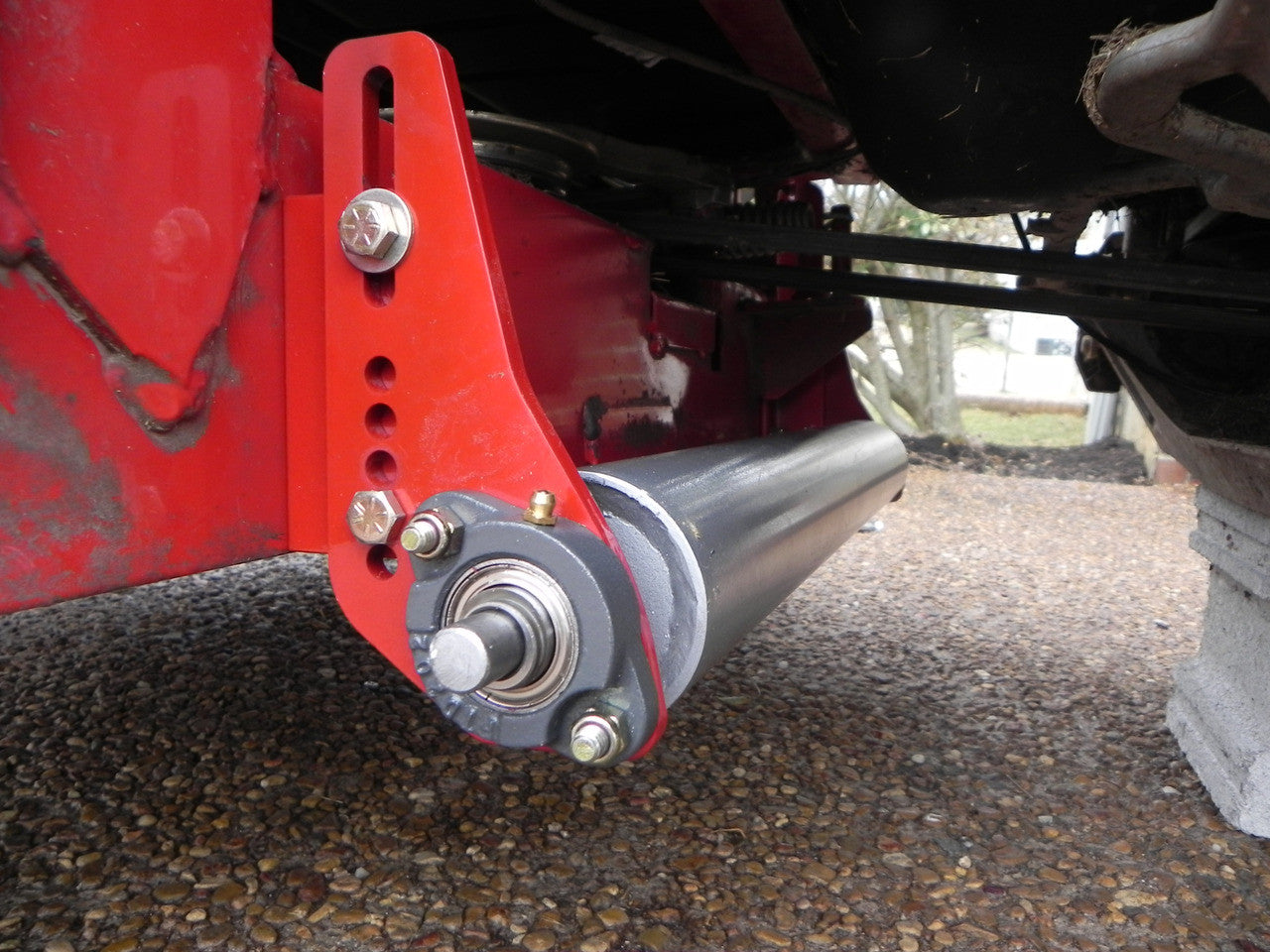

Special thanks to Ethan Duncan who help us develop this kit and sent the lawn striper photos shown here.
